CAN FL1765 FL1766 Combi Hob and Sink Conversion Kit 1

Kit for an easy and high-quality campervan conversion

We’ve created this conversion kit to give you everything you need to get your CAN sink and hob combi cooker up and running. CAN are a veteran manufacturer in the campervan cookware field, producing reliable, lightweight and robust designs that have garnered the trust of those in the industry.

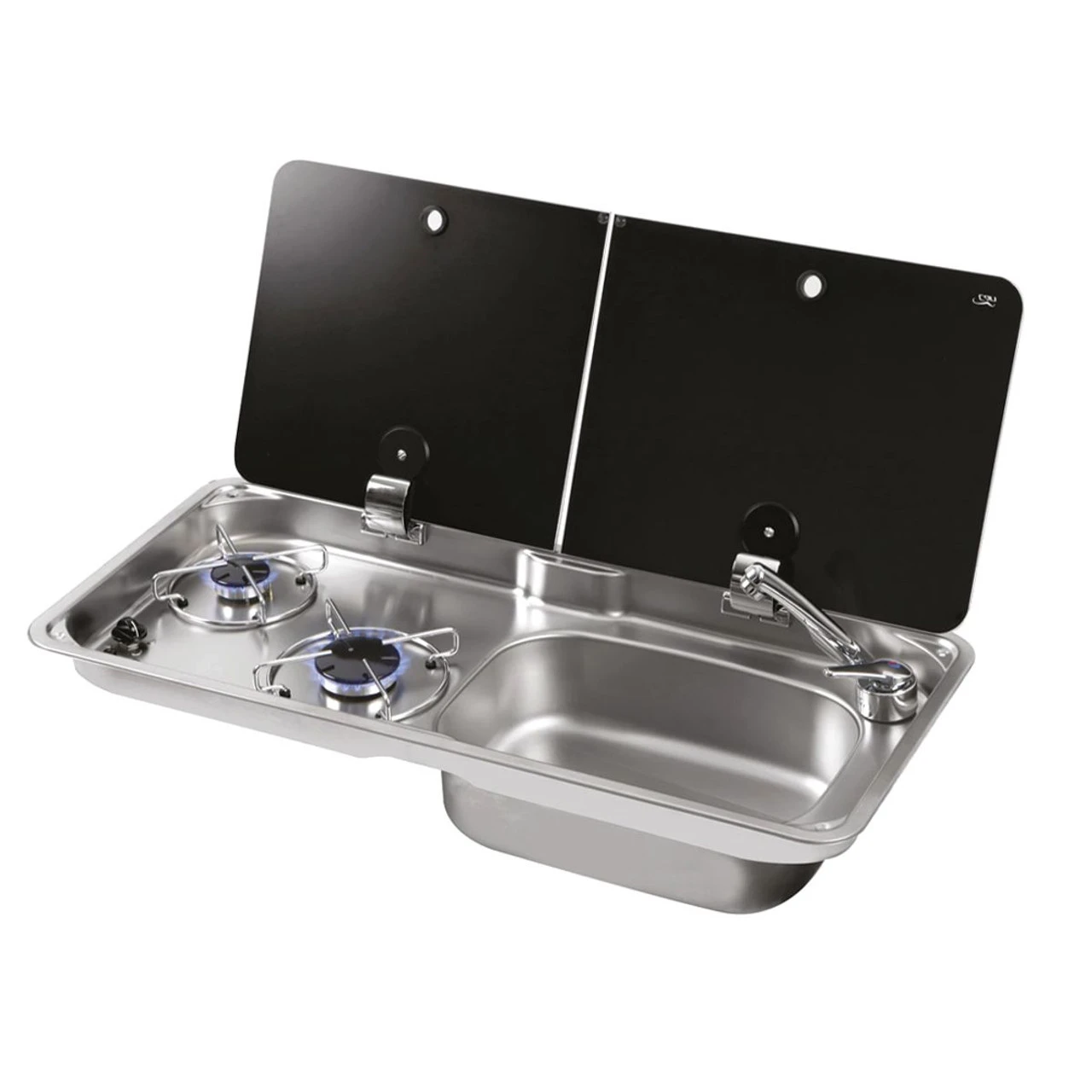

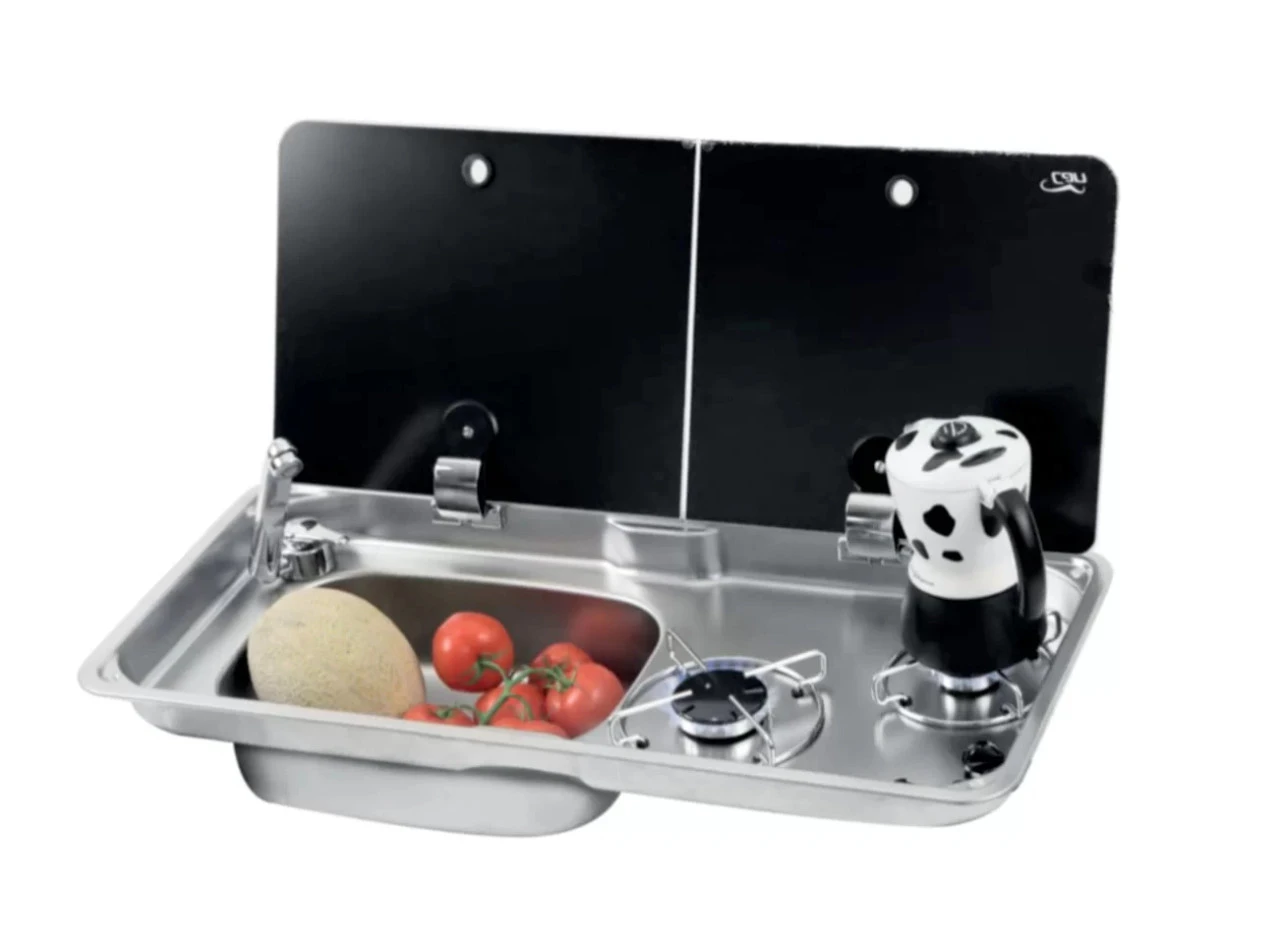

Dual burner hob with integrated sink and tap hole

The CAN FL176x series combi sink and hob is designed for the leisure industry, with features ideal for caravan, campervan, motorhome and boat use. It uses two compact yet powerful gas burners, which are concealed by a tempered glass lid with recessed soft-close hinges. The pan supports are mounted on anti-vibration grommets, and the sink features a pre-drilled tap hole for easy installation.

With full kit of complementary conversion parts

We’ve included jerry cans, pipework and a pump to give you a compact and effective water system – as well as clips for a clean installation. You can choose between a cold water tap or a hot and cold mixer tap, too. As for the gas hobs, you can choose between either a gaz system for more temporary installations, or a bulkhead regulator system for more permanent ones. These are supplied with copper gas pipe or flexible gas hose, the appropriate regulator, as well as gas fixings.

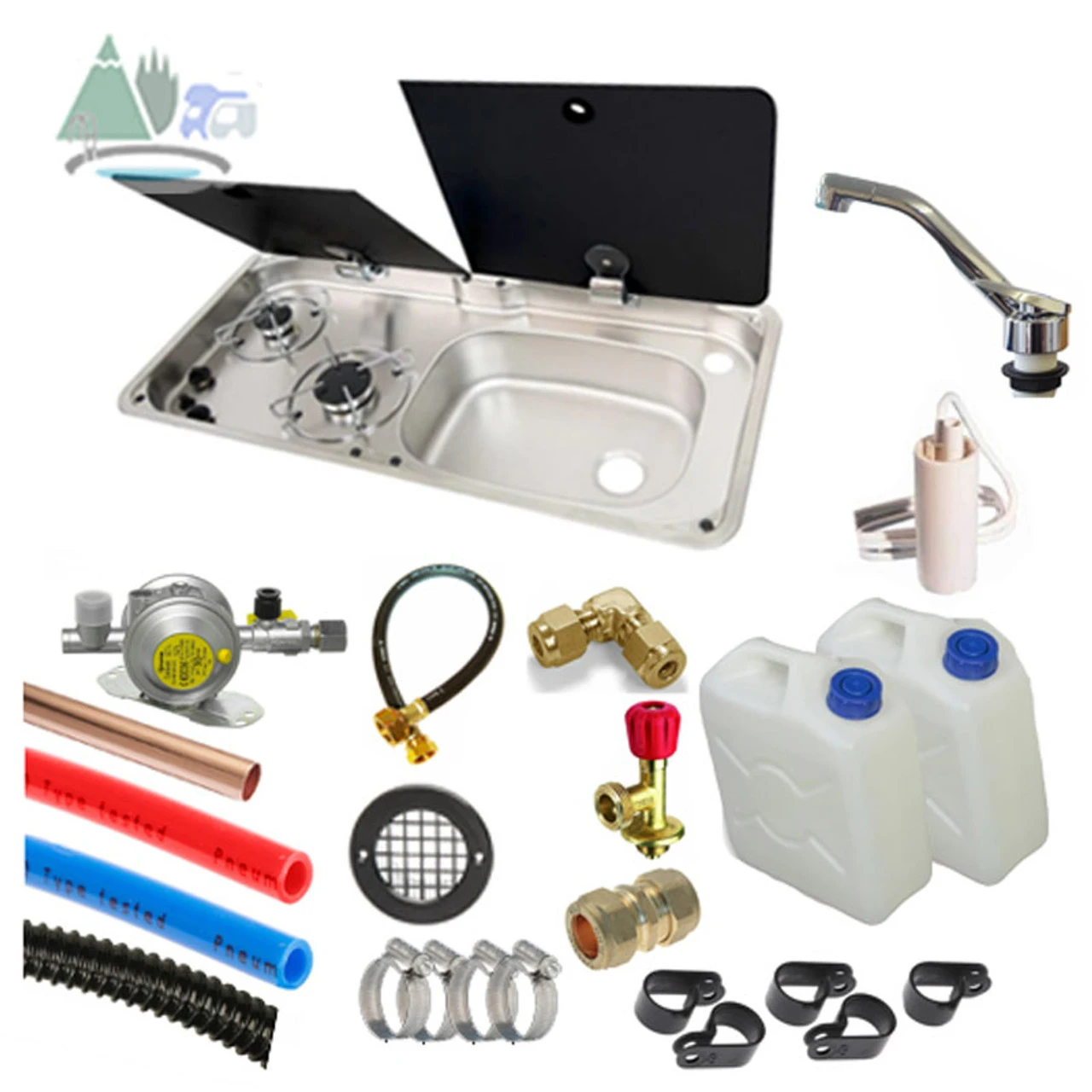

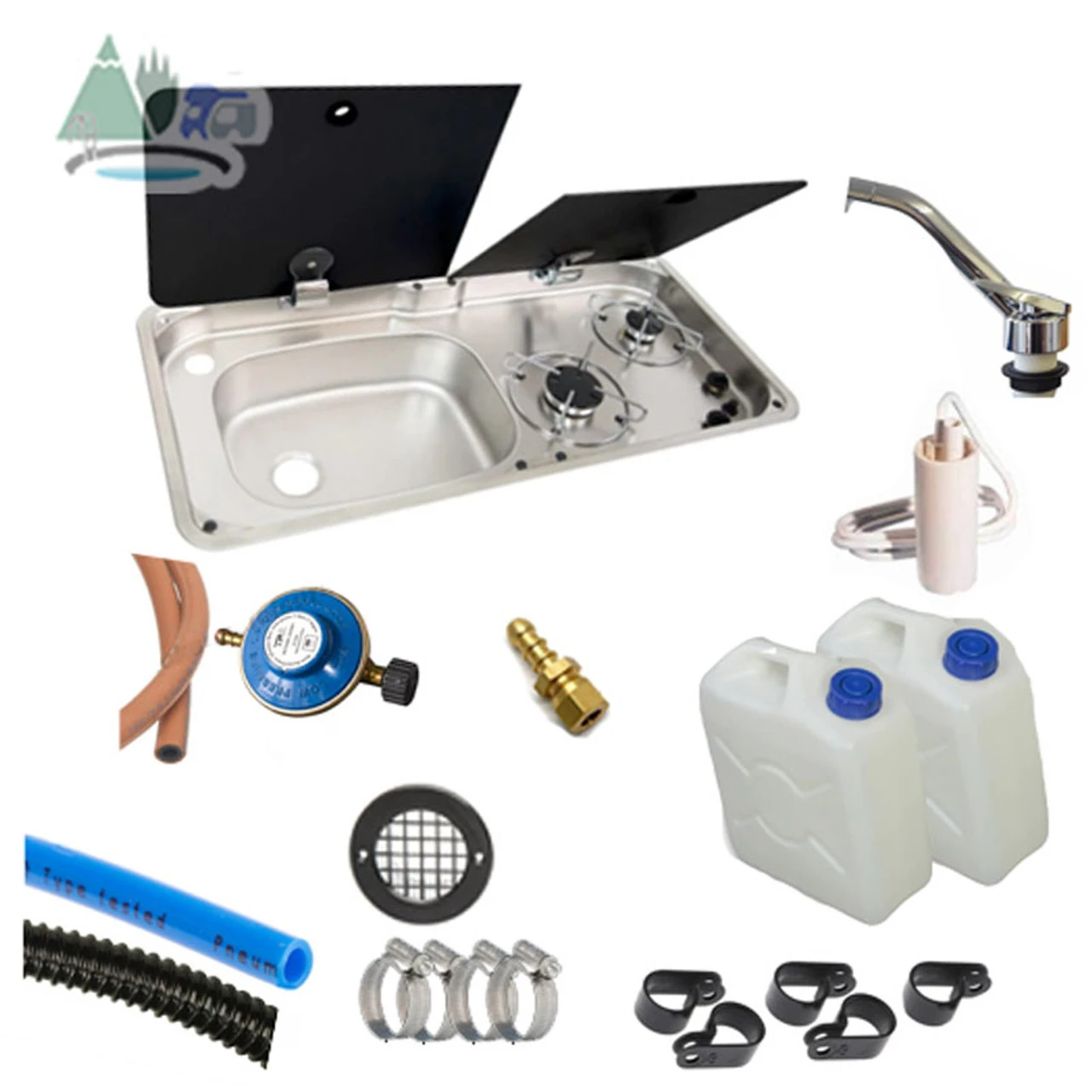

CAN FL1765 FL1766 Conversion Kit 1 Contents:

• CAN FL1765 or FL1766 combi hob (left or right – e.g. right has sink on right hand side)
• Reich Samba micro switch Cold Tap or Hot & Cold Tap
• Whale Submersible Pump
• 2 x 9.5L Jerry Cans
• 2mtr x 10mm Cold Pipe
• 2mtr x 20mm Waste Pipe
• 2mtr x 10mm Hot Pipe (Only available when mixer tap selected)
• 1 x 75mm Floor Vent
• Pack of x 5 P Clips
• 4 x Jubilee Clips

Camping gaz option includes:

• 1x Camping Gaz Regulator
• 1x 8mm Compression Nozzle
• 1mtr LPG Gas Hose

Bulkhead option includes:

• 1 x 8mm Bulkhead Regulator
• 1 x 45cm Pigtail
• 1 x 8mm 90° Compression Elbow
• 1 x Gaz Adapter
• 2mtr x 8mm Copper Pipe
• 1x 8mm Straight Compression Coupling

CAN FL1765 FL1766 Specification:

• Dimensions: Length: 765 mm; Depth: 355 mm; Height: 150 mm
• Tap Hole Dimension: 33mm
• Piezo Ignition
• 2 Glass Lids
• Burner power: 1 x Auxiliary burner 1 kW, 1 x Semi Rapid burner 1.9 kW
• Gas supply: LPG 28-30 mbar
• Gas consumption: Auxiliary burner 73g/h, Semi Rapid burner 127g/h
• Safety device: Thermocouple

Technical Specifications:

Burner power:

1 x Auxiliary burner 1 kW, 1 x Semi Rapid burner 1.9 kW

Gas supply:

LPG 28-30 mbar

Gas consumption:

Auxiliary burner 73g/h, Semi Rapid burner 127g/h

Safety device:

Thermocouple

Ignition:

Piezo
