CBE PC110 Campervan 12v Control Panel Kit with Charger, Fusebox & Breaker

High-quality electrical management system for campervans and motorhomes

The PC110 is CBE’s latest control panel unit, with a modern LED display, dedicated buttons for common campervan functions and a microcontroller to provide extra built-in features and rapid response rates. The control panel provides both vehicle and leisure battery levels, water tank levels, 3-way fridge control and switches for water and heating control.

Once installed, this sleek control panel is all you will see. You can tuck the fusebox and circuit breaker away in a cupboard wall, with the long cables ideal for routing out of view.

Includes waste tank level probes

The included tank level probes allow you to monitor your waste water tanks in real-time, taking the guesswork out of your holiday, These probes come with 6m long cables, allowing you to route them discreetly into your water tanks, and allow your control panel to provide a clear report.

Safe, professional electric installation kit with fusebox and charger

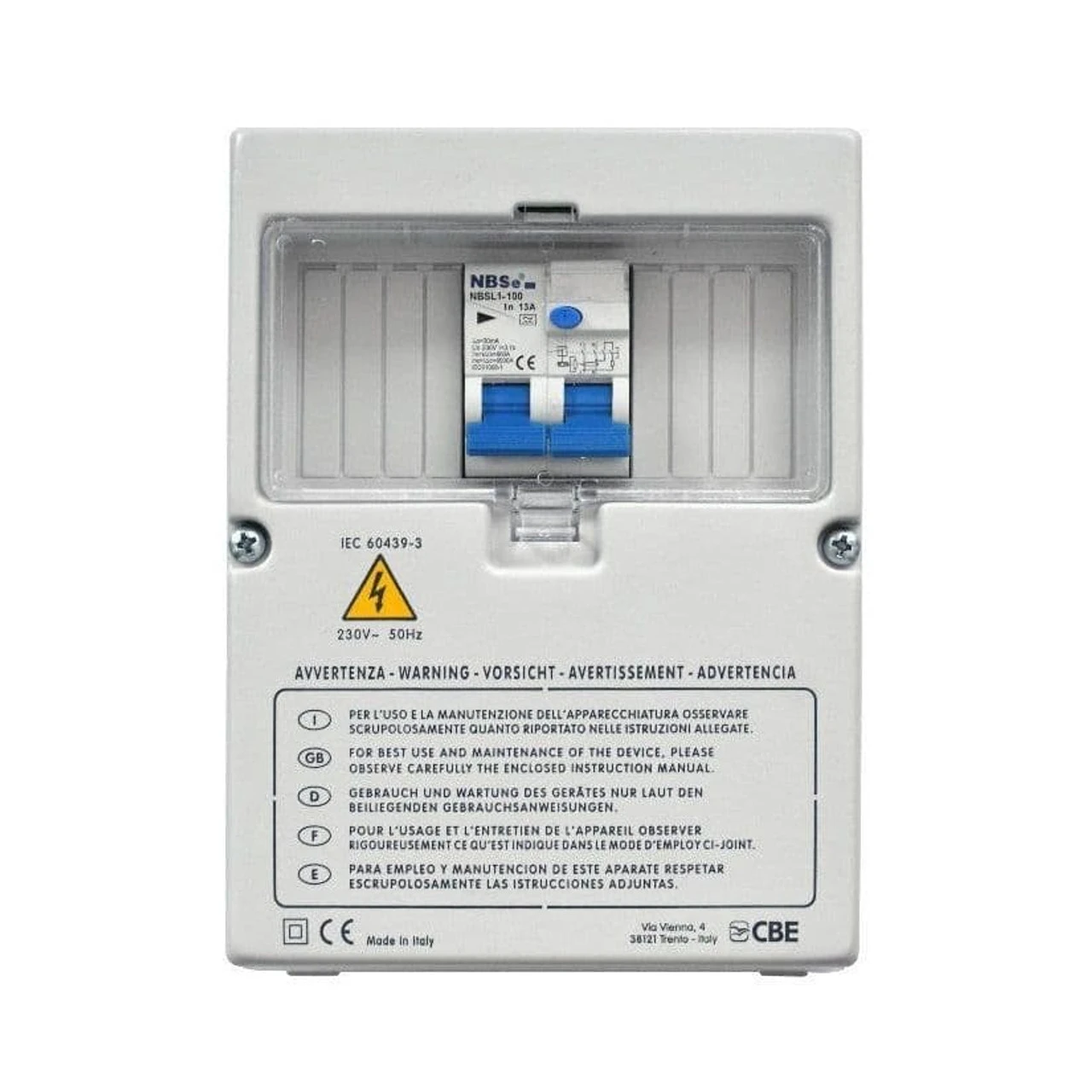

This CBE kit ensures the electrical system inside your campervan conversion uses safe, efficient and fully compatible components. A compact 12v distribution box houses fuses for your system, ensuring issues in your electrical supply are isolated to keep your individual appliances protected. The included 16A battery charger is powerful enough to top up both your leisure battery and vehicle battery, and a circuit breaker board provides easy control for later maintenance.

CBE PC110 kit features:

• Car & leisure battery level checker
• Waste water tank alarm
• Electronic battery separator
• 3-way fridge controller
• Protection fuses
• Car and leisure battery charge control

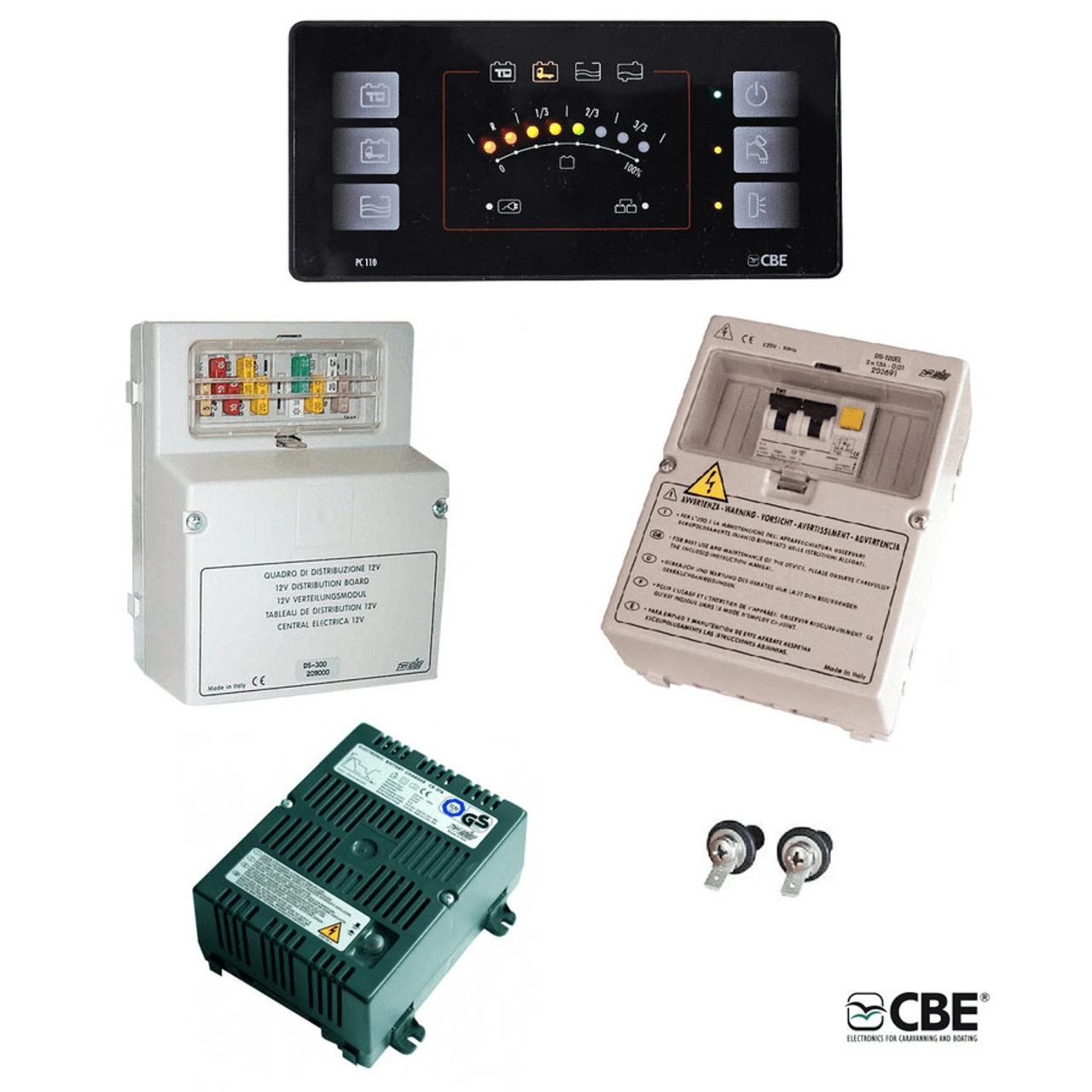

CBE PC110 kit includes:

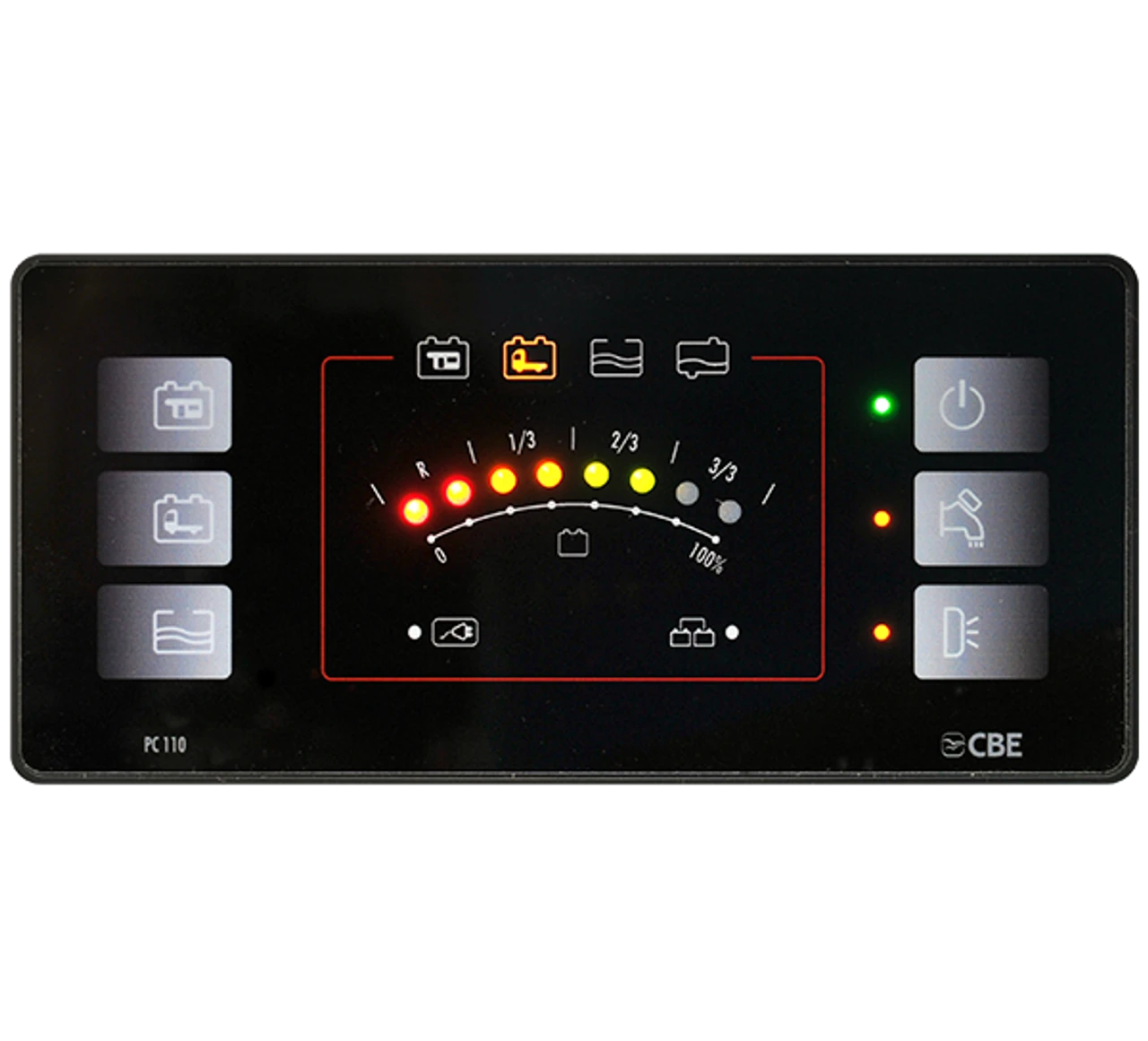

• LCD Control panel PC110 (111100)

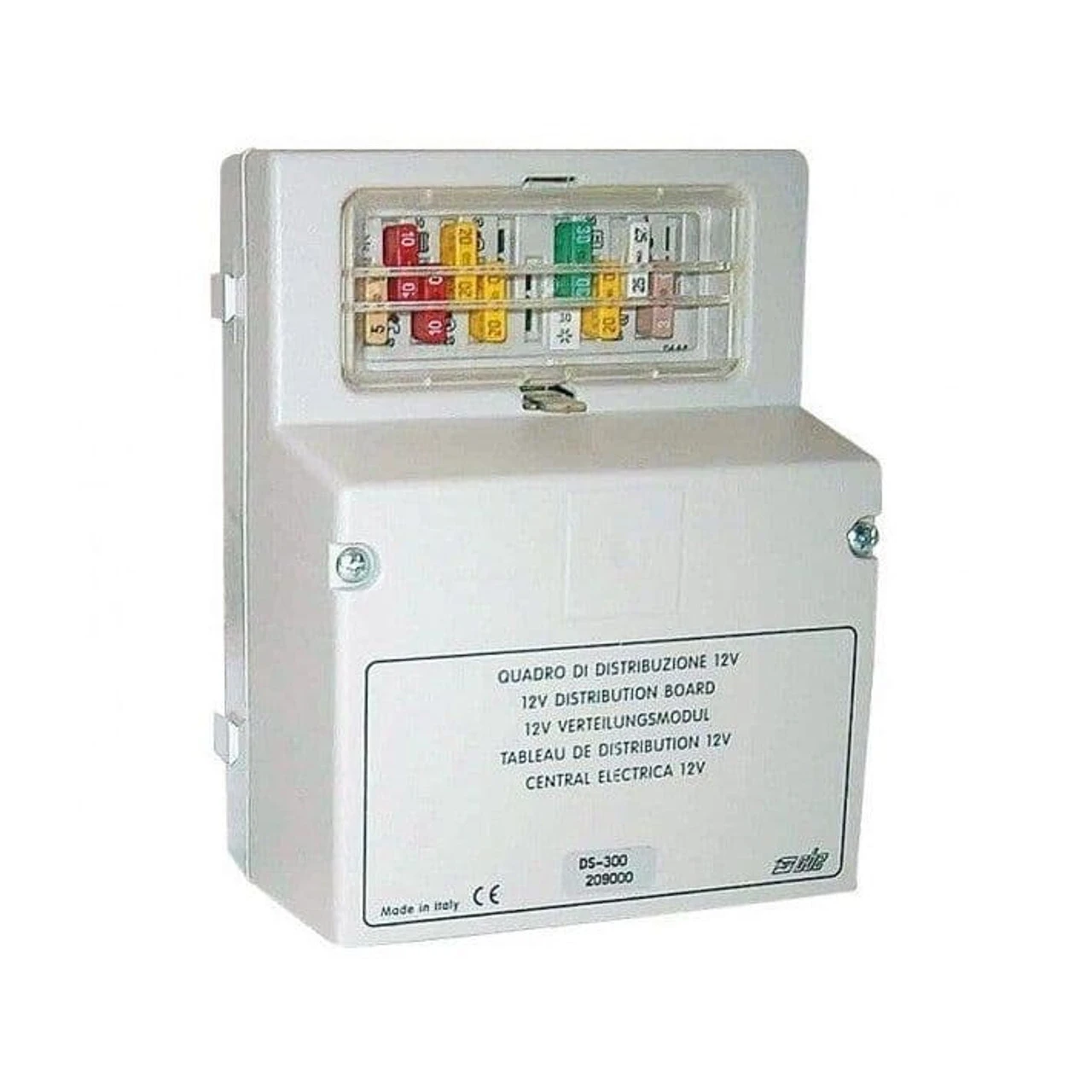

• 12v distribution box with protection fuses DS300 (209000)

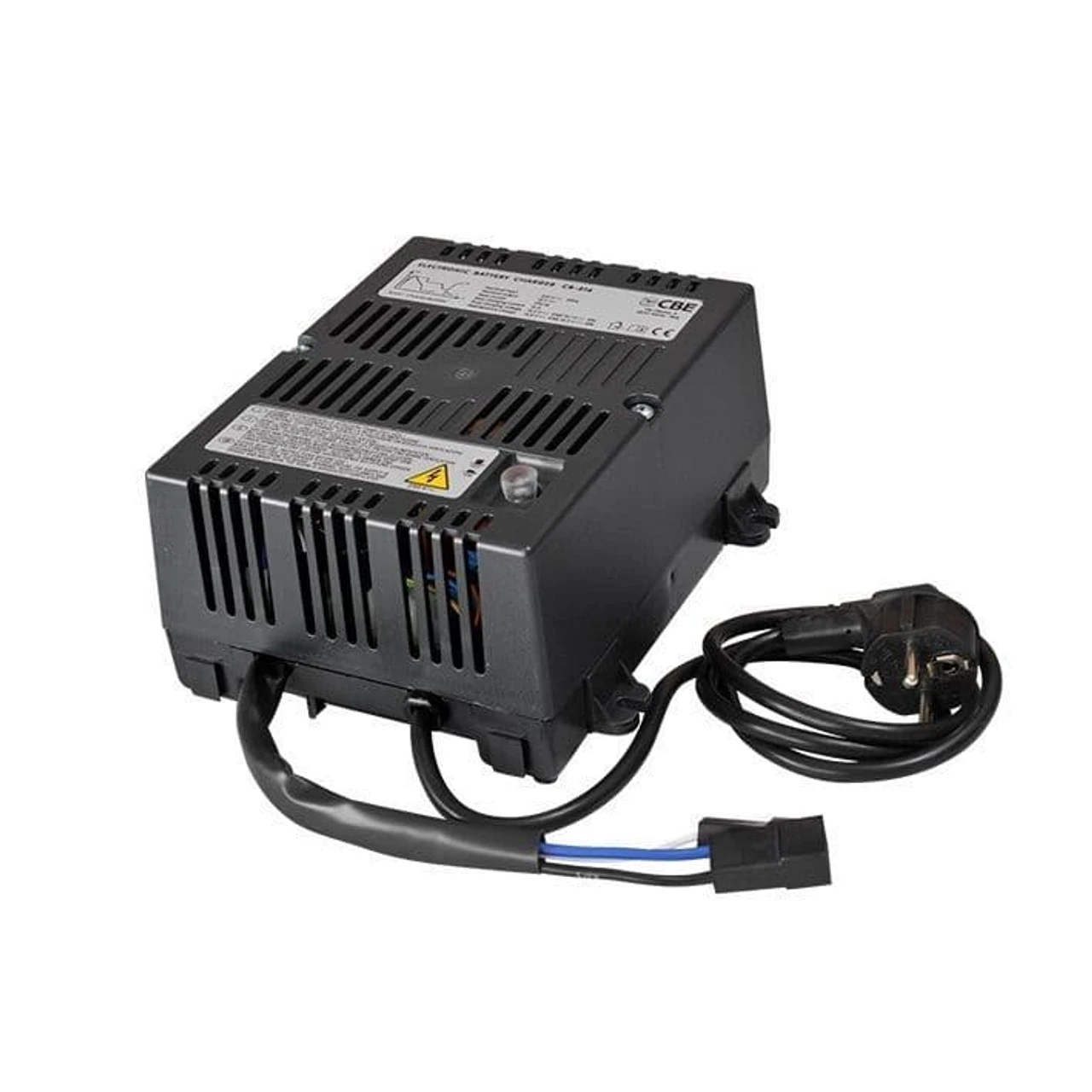

• 12V 16A switching battery charger CB516-3 (32517)
• Screw probes for waste water tank (505000)
• Cables kit for probes – 6m CCS910 (709160)
• Cables for control panel – 6m (709623)
• Fuses + fuseholder for vehicle and leisure battery R450 (222551)

Technical Specifications:

Control panel length:

170 mm

Control panel width:

80 mm
