Dometic Smev 8821 Hob and Sink Campervan Universal Kit

Universal installation kit for campervans

The Dometic Smev 8821 Hob and sink combination unit a great, compact cooker for your campervan or motorhome kitchen. We’ve bundled it in this universal kit, with LPG gas hose as well as 8mm copper pipe, allowing you to pick your own regulator depending on your installation.

With glass lid and tap

Our kit includes all the essentials for fitting your new campervan sink and cooker, including a 12v tap which fits into the pre-drilled hole. The Dometic 8821 combi sink and hob comes equipped with a tempered glass lid, and a sink strainer.

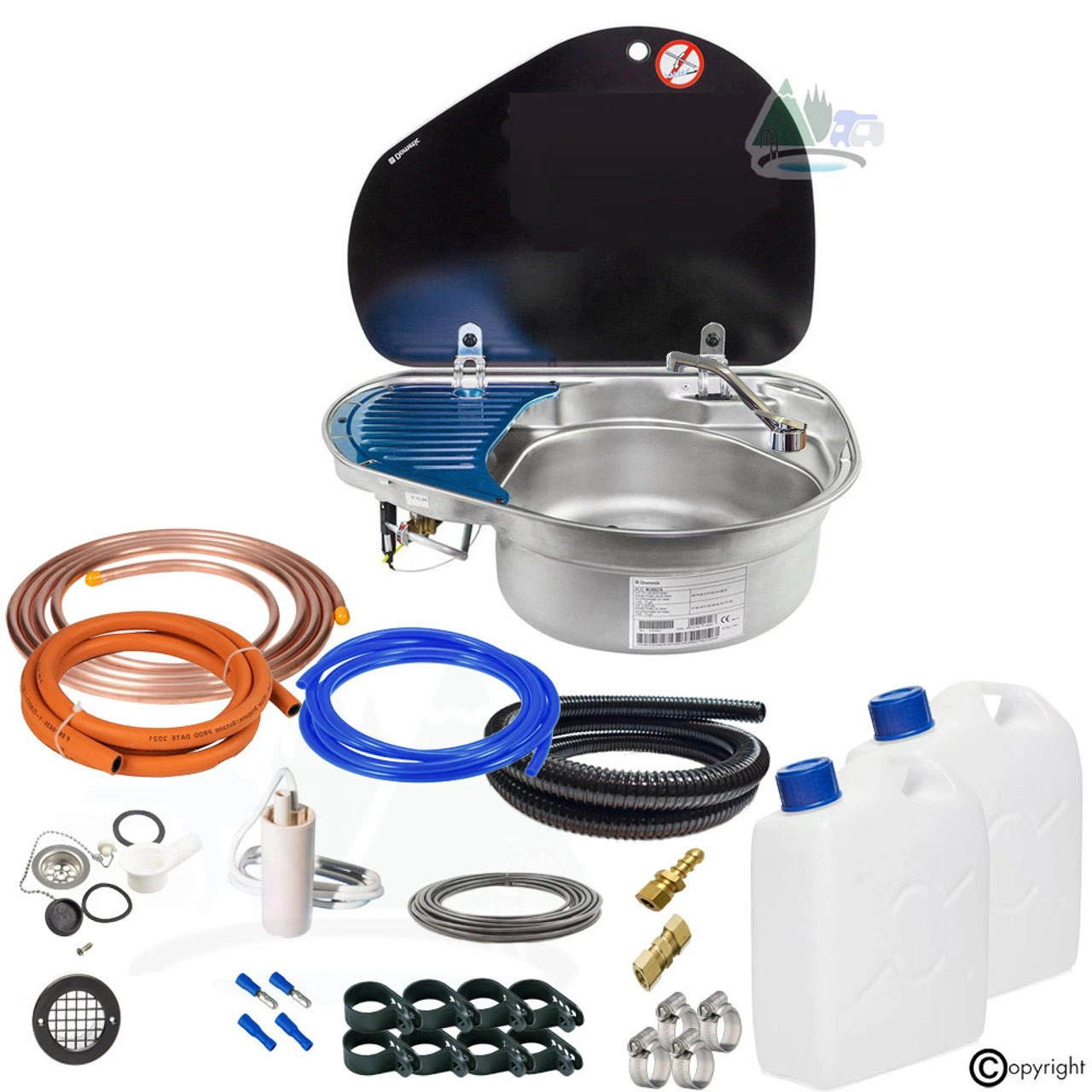

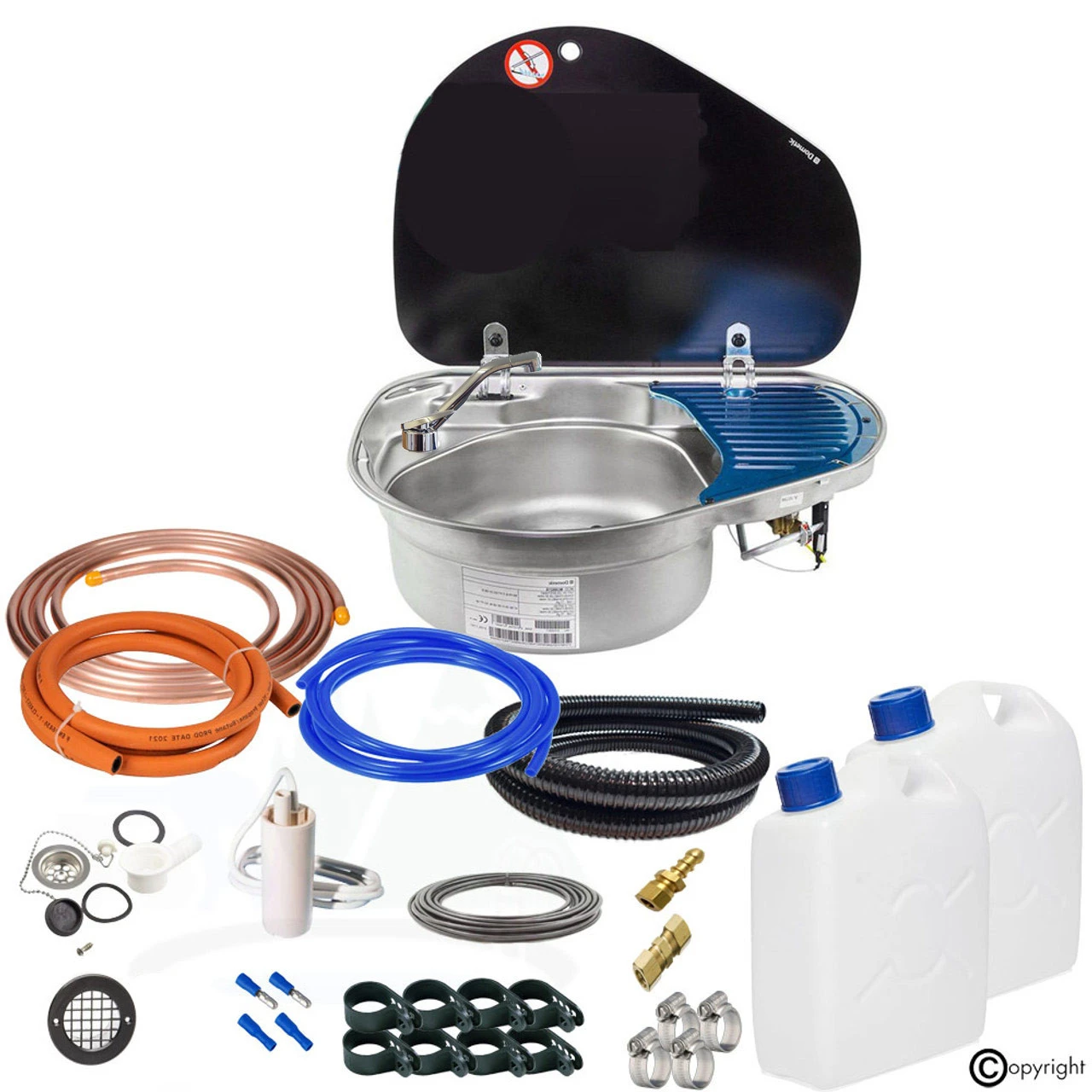

Standard Dometic Smev 8821 campervan conversion Universal Kit:

• 8821 Hob and Sink (Includes: seal & siphon)
• Folding Micro-Switched Cold Tap
• Whale Submersible Pump
• 2 x 10L Jerry Cans (Dimensions – L28cm x W13cm x H34cm)
• 2mtr x 10mm Cold Pipe
• 2mtr x 20mm Waste Pipe
• 75mm Floor Vent
• Pack of x 8 P-Clips
• 4 x Jubilee Clips
• 3 metres of 12 volt twin core cable
• 1 x 8mm Straight Compression Coupling
• 1x 8mm Compression Nozzle
• 1mtr LPG Gas Hose
• 2mtr x 8mm Copper Pipe
• cable connectors
• Template will be drawn on the box for you

Dometic Smev 8821 Specification:

• Dimensions: 152 x 525 x 421 mm
• Output cooker plate 1 1.00 kW
• Output cooker plate 2 1.80 kW
• Gas consumption cooktop 204.00 g/h
• Gas pressure (DIN732) 30 mbar
• Ignition: piezo
• Weight: 5.8 kg
