Dometic Smev 9222 Hob and Sink Campervan Universal Kit

The Dometic Smev 9222 Hob and sink combination unit is the ideal solution for starting your new van conversion. The universal kit comes with both LPG gas hose and 8mm copper pipe which allows you to pick your own regulator depending on the installation.

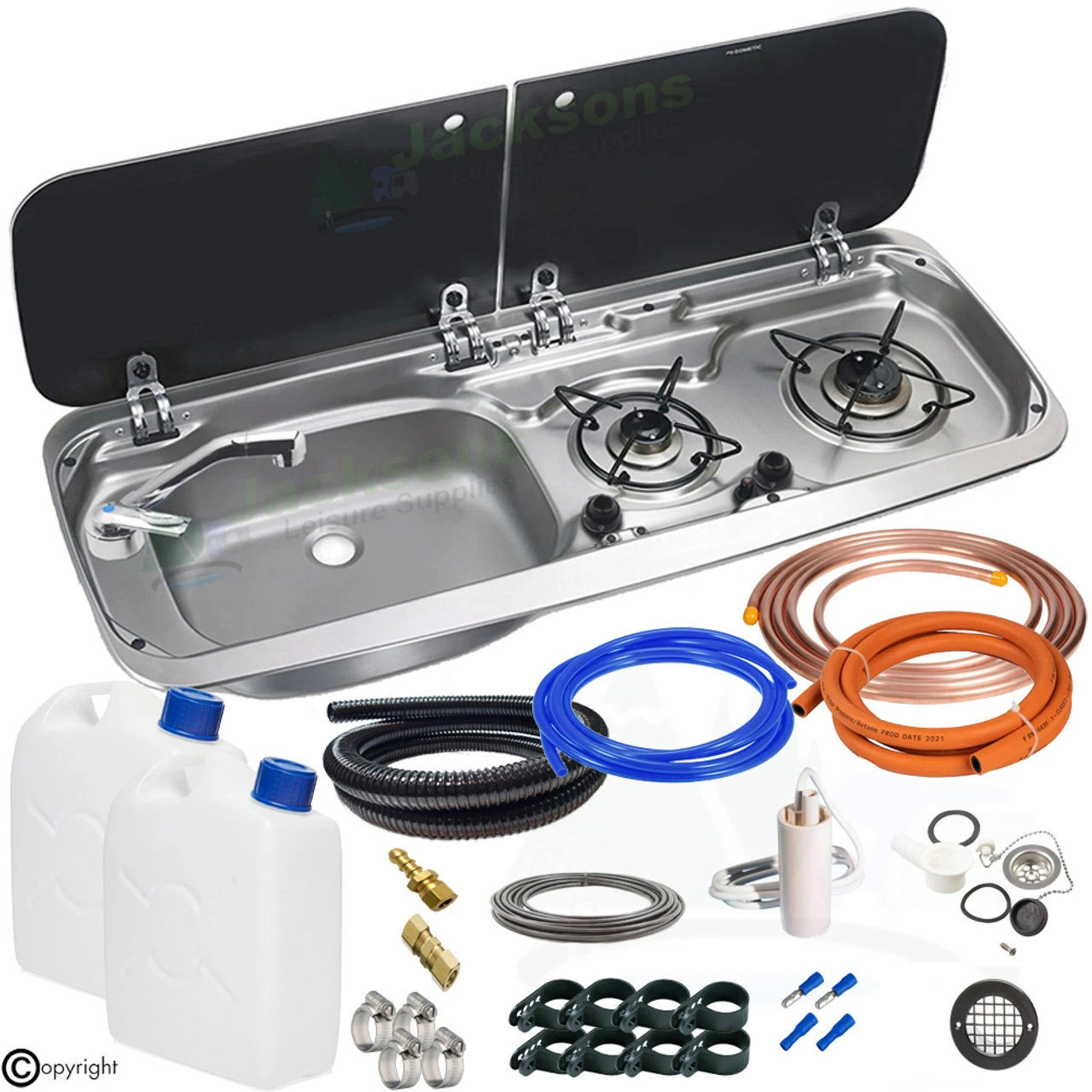

Standard Dometic Smev 9222 conversion Universal Kit:

• 9222 Hob and Sink (Includes: seal & siphon)
• Folding Micro-Switched Cold Tap
• Whale Submersible Pump
• 2 x 10L Jerry Cans (Dimensions – L28cm x W13cm x H34cm)
• 2mtr x 10mm Cold Pipe
• 2mtr x 20mm Waste Pipe
• 75mm Floor Vent
• Pack of x 8 P-Clips
• 4 x Jubilee Clips
• 3 metres of 12 volt twin core cable
• 1 x 8mm Straight Compression Coupling
• 1x 8mm Compression Nozzle
• 1mtr LPG Gas Hose
• 2mtr x 8mm Copper Pipe
• cable connectors
• Template will be drawn on the box for you

Dometic Smev 9222 Specification;

• Dimensions: 900mm (W) x 152mm (H) x 370mm (D)
• Built-in dimensions: 793mm (W) x 307mm (D)
• Output cooker plate 1 1.00 kW
• Output cooker plate 2 1.80 kW
• Gas consumption cooktop 204.00 g/h
• Gas pressure (DIN732) 30 mbar
• Weight: 5.8 kg
