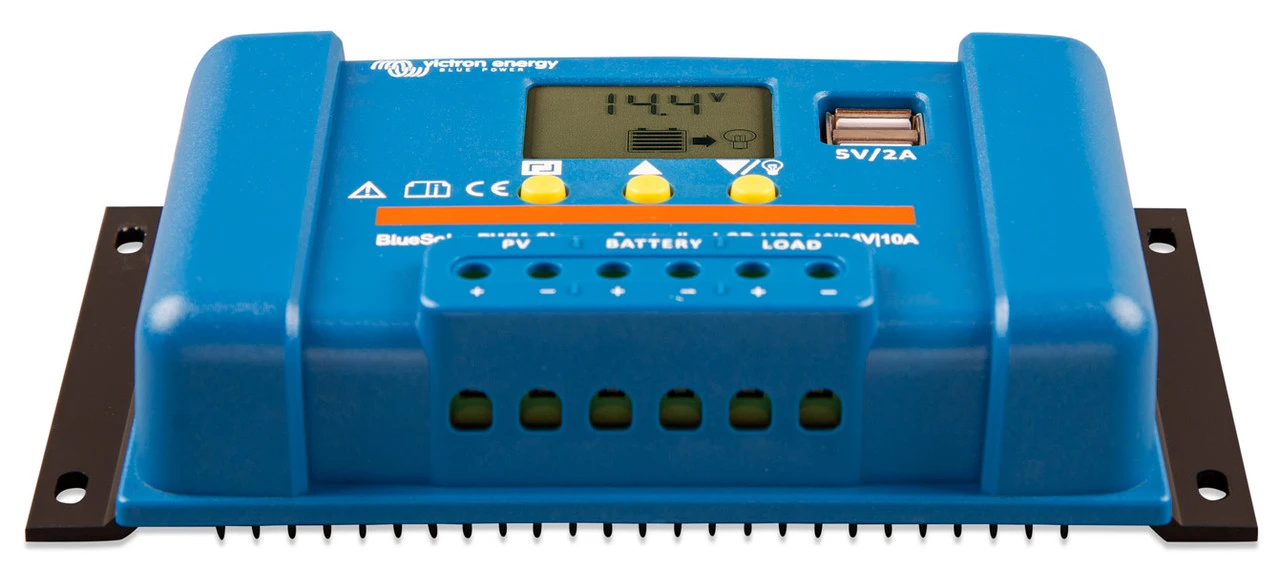

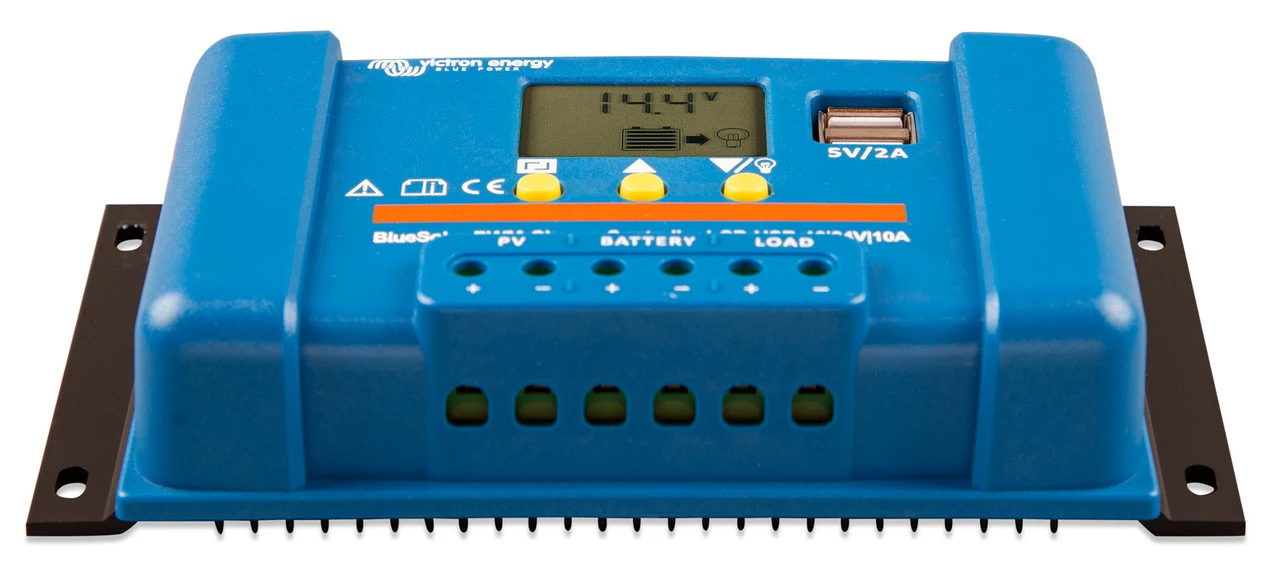

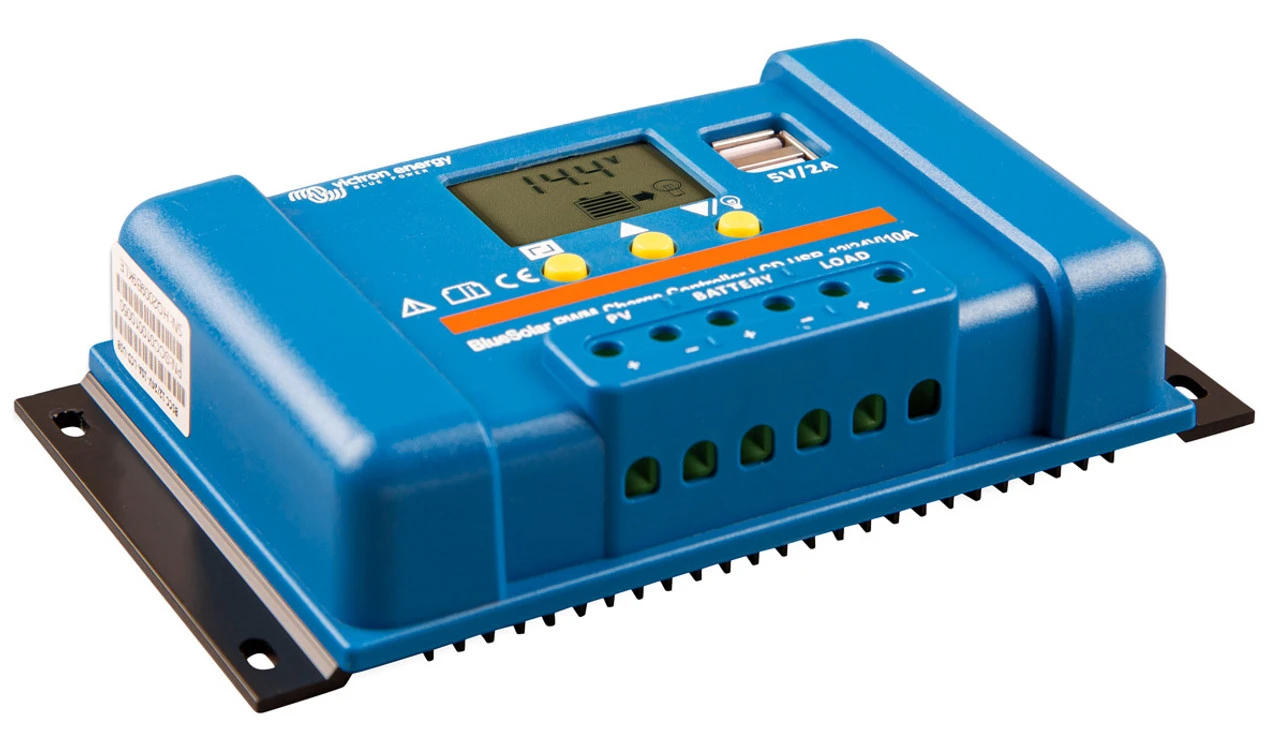

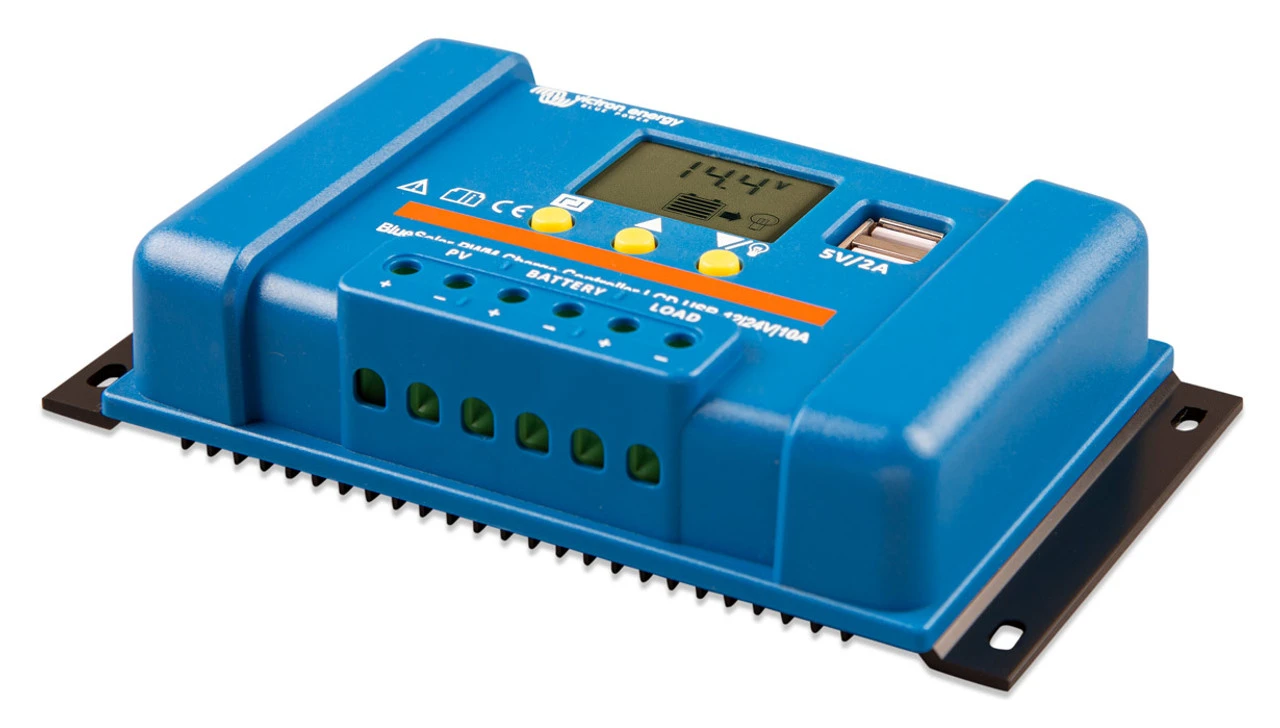

Victron Energy BlueSolar PWM Charge Controller w/LCD Display & USB

Powerful and easy to monitor battery charger

With a new ultra-low-power LCD display, it’s easier than ever to monitor your battery’s charge levels and system status. The BlueSolar PWM gives you controllable battery charging from your solar panels, with multiple protections to prevent common issues.

Three stage charging

The BlueSolar uses three-stage battery charging, with a bulk, absorption and float mode to maximise the efficiency of each type of charging. Each stage can be programmed to optimise your setup. It also contains a lighting control function, providing extra control to your campervan, caravan, motorhome, boat or off-grid setup. The BlueSolar contains pre-programmed algorithms for optimal charging of AGM, GEL, flooded and LiFePo4 batteries.

With protections to prevent failure

The BlueSolar PWM includes a programmable load output with low voltage and a manual disconnect. This output is protected against both over load and short circuit, and the BlueSolar protects against reverse polarity connection of both the solar panels or battery. It also features two 5V USB outputs for easy access, too.

Victron Energy BlueSolar PWM Charge Controller Features:

• Low power LCD display for easy monitoring and programming
• Lighting control function – programmable with buttons on interface
• Three-stage battery charging – bulk, absorption & float
• Two 5V USB outputs
• Programmable load output with low voltage & manual disconnect
• Load output protected against over load & short circuit
• BlueSolar protects against reverse polarity of solar panels and/or battery
• Option to schedule load output on/off times

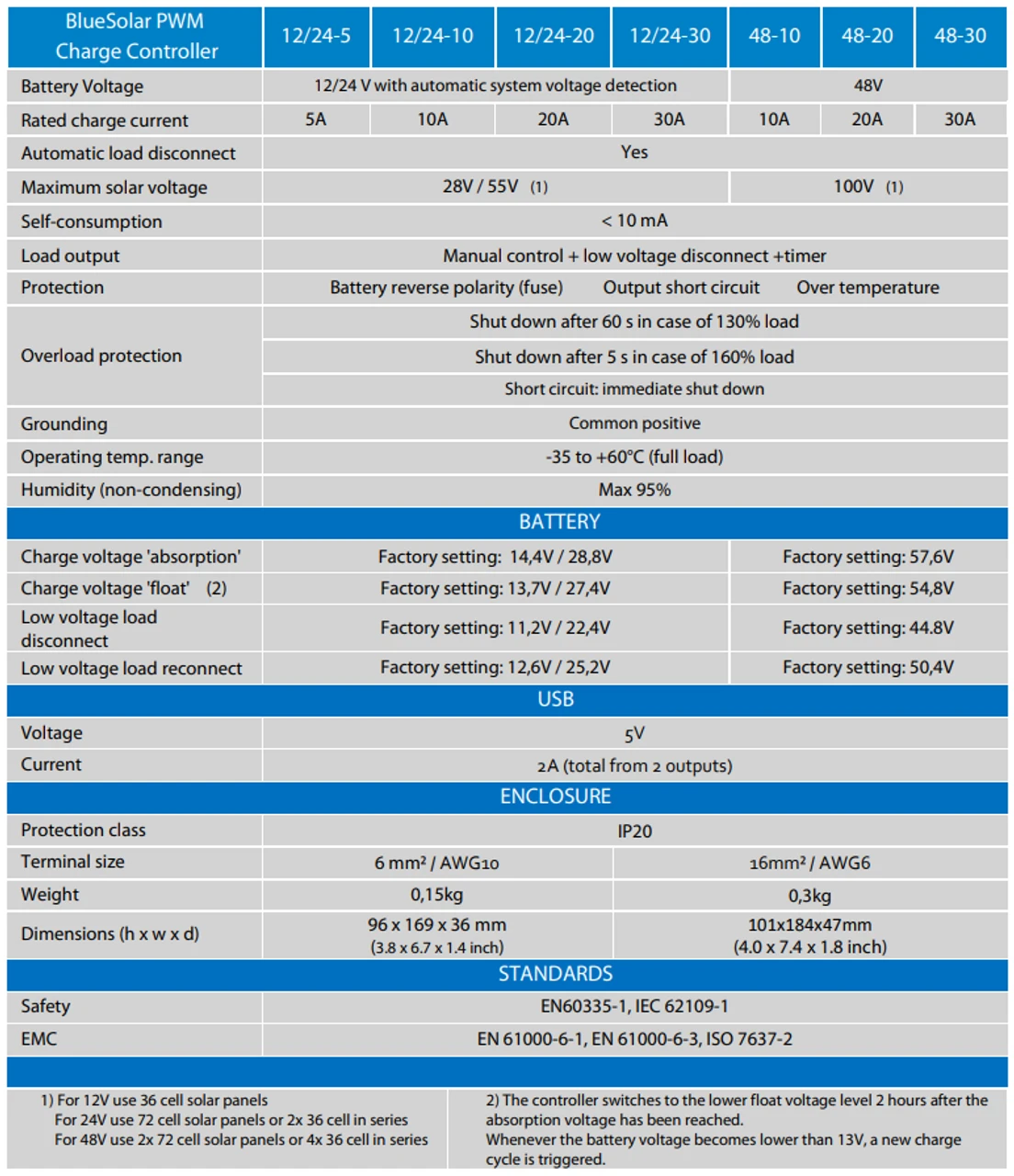

Victron Energy BlueSolar PWM Specifications:

Victron Energy BlueSolar PWM Full Datasheet:
