Vision Plus TV Wall Mounting Bracket

Lightweight, strong and versatile

Vision Plus TV Wall Mounting Brackets are great for mounting TVs of up to 27″.  For example, the Avtex or Vision Plus range of motorhome, campervan and caravan televisions can be suspended safely and securely by these brackets, saving you space in your campervan, caravan, motorhome or marine vehicle. TV brackets help to secure your television, ensuring it doesn’t get damaged in transit.

The perfect bracket for any campervan, motorhome, caravan or boat

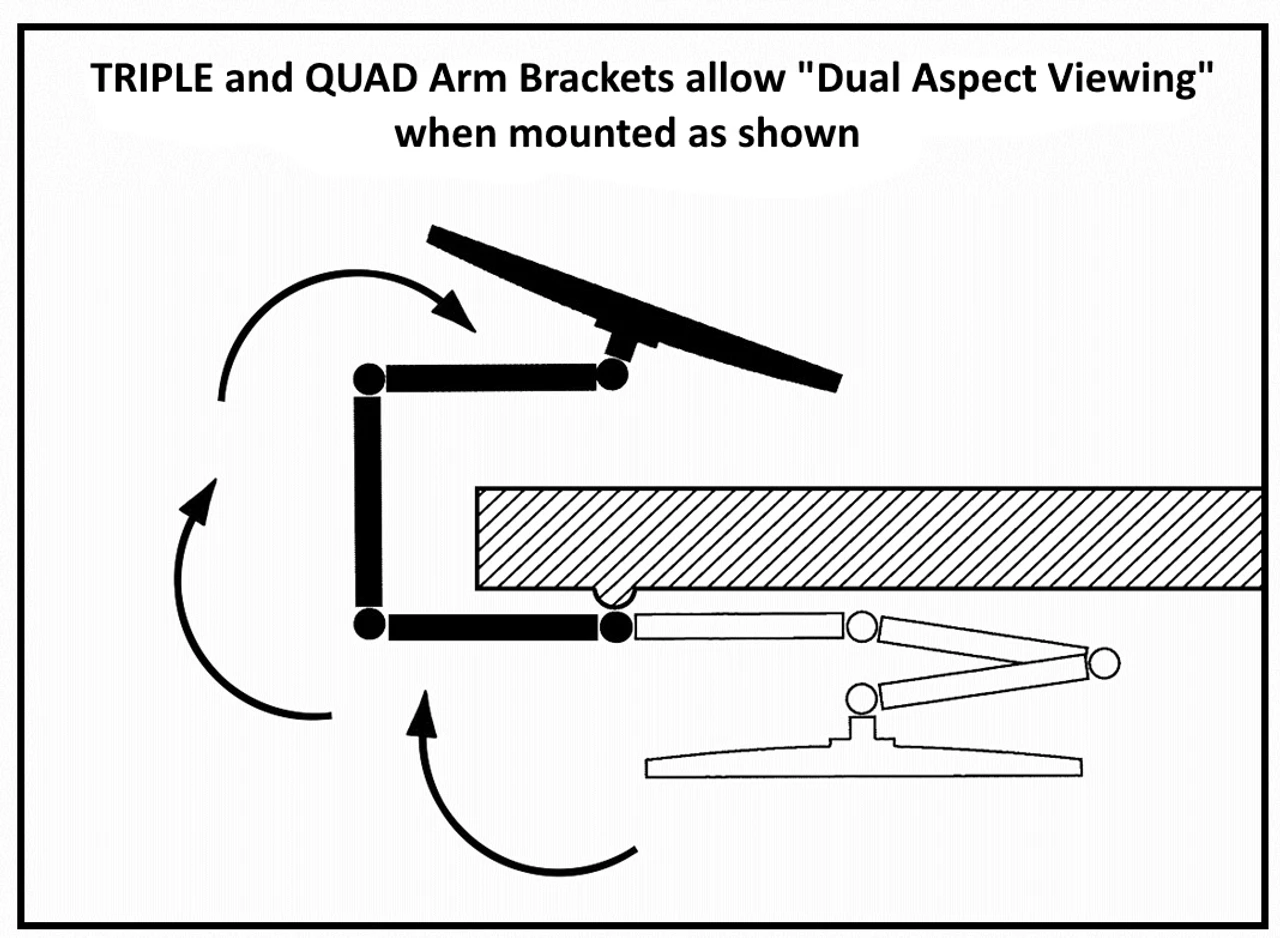

Vision Plus produce TV wall mounting brackets with single, double and triple arms, as well as a short arm version and an optional quick release bracket. Brackets with extra arms allow you to adjust the position of your television further, giving the arms extra reach while still folding flat against the wall.

Quick release compatible

Vision plus supply their Tv wall mounting swing arms with quick release brackets, making it easy to stow away or move your campervan or caravan 12v television. Friction-adjustable hinges also ensure that your arm is never too loose or too stiff, ensuring it moves only when you want it to.

Short/Single/Double/Triple arm features:

• Includes quick release bracket
• Friction-adjustable hinges to resist or stop movement
• Lock secures TV from movement when in transit
• VESA compliant for 75mm and 100mm mounting
• 10 degrees of TV tilt available upwards or downwards
• Cable management clips each side of the arm

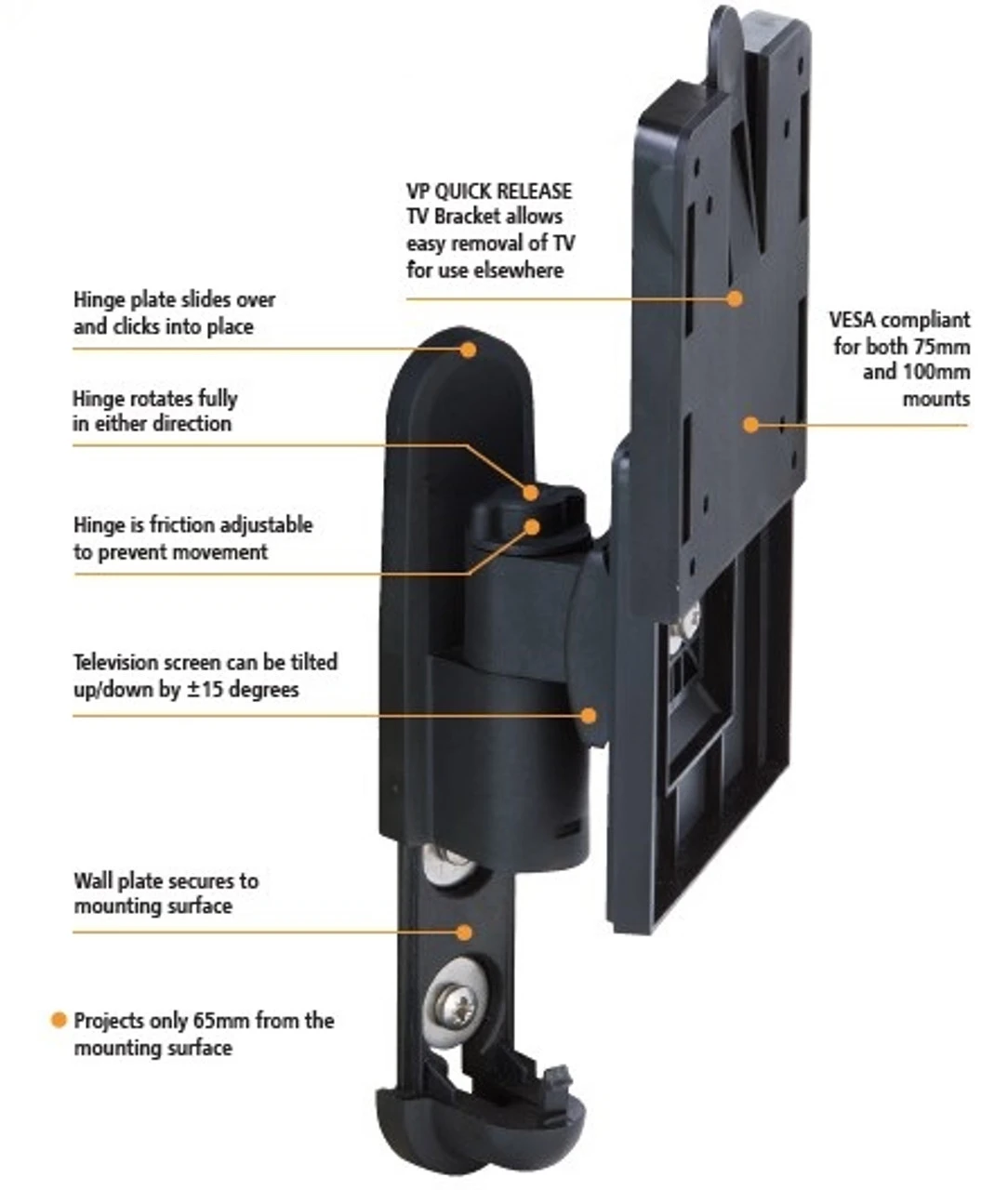

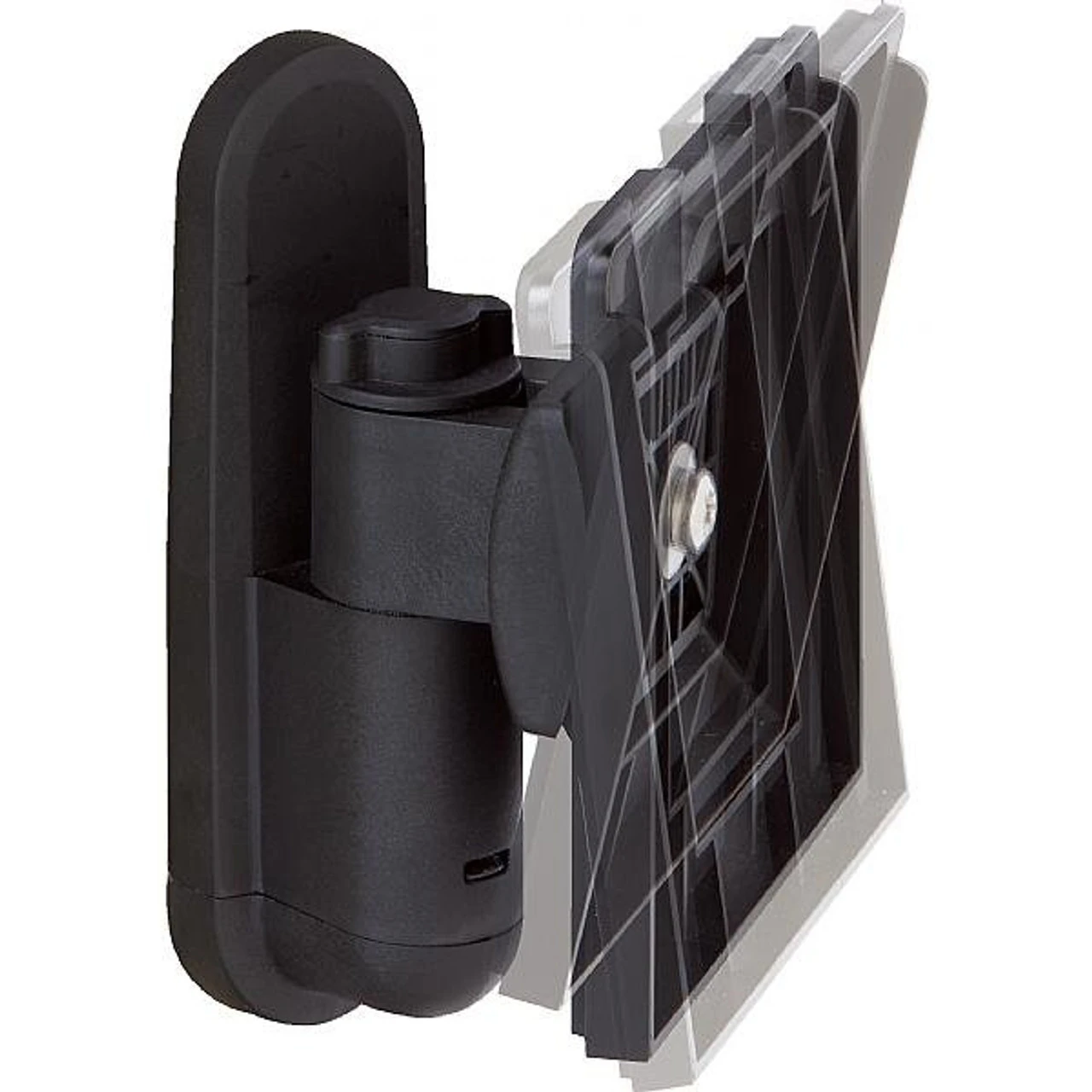

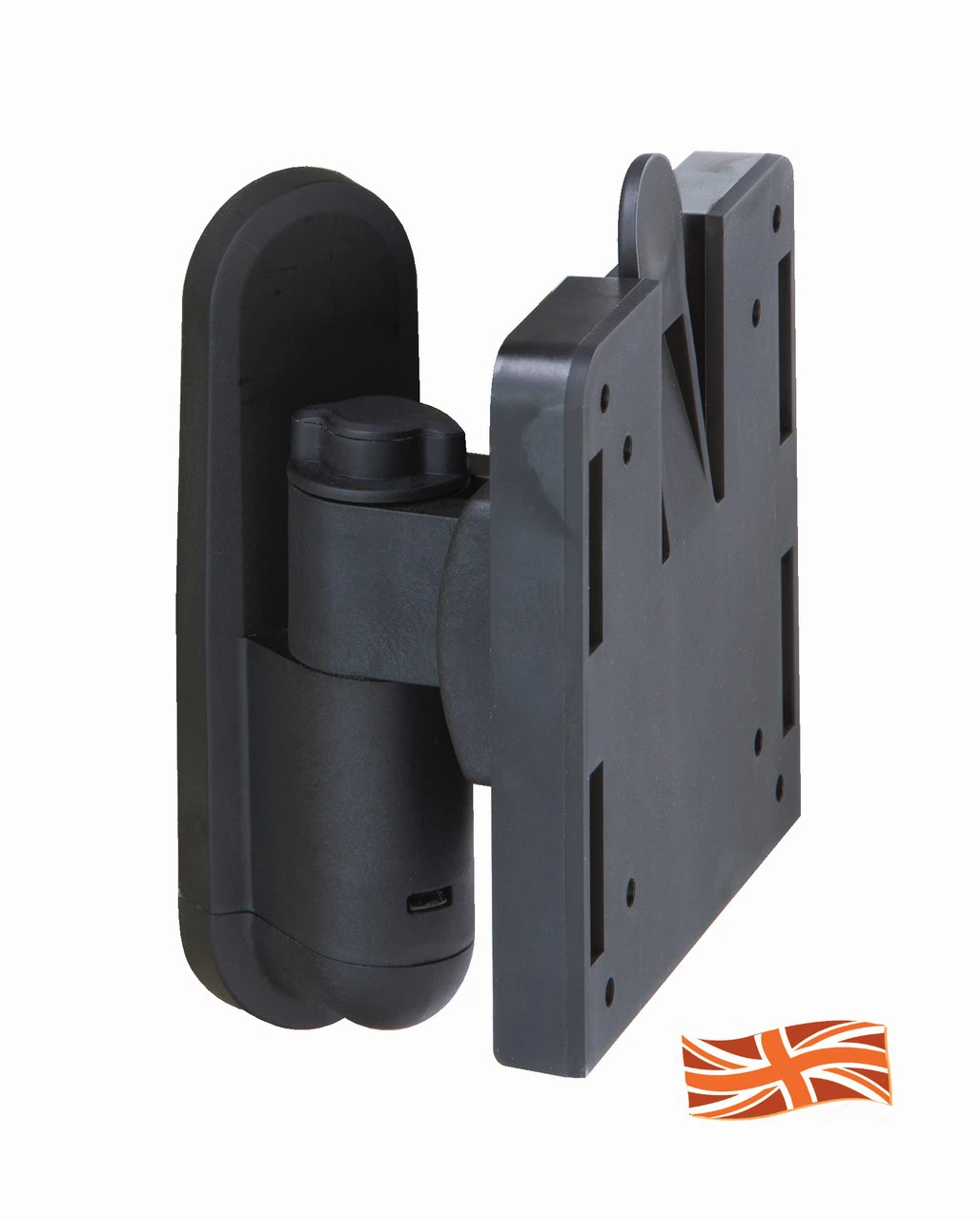

• SHORT: Extends 84mm from the wall. Lightweight 0.4kg design

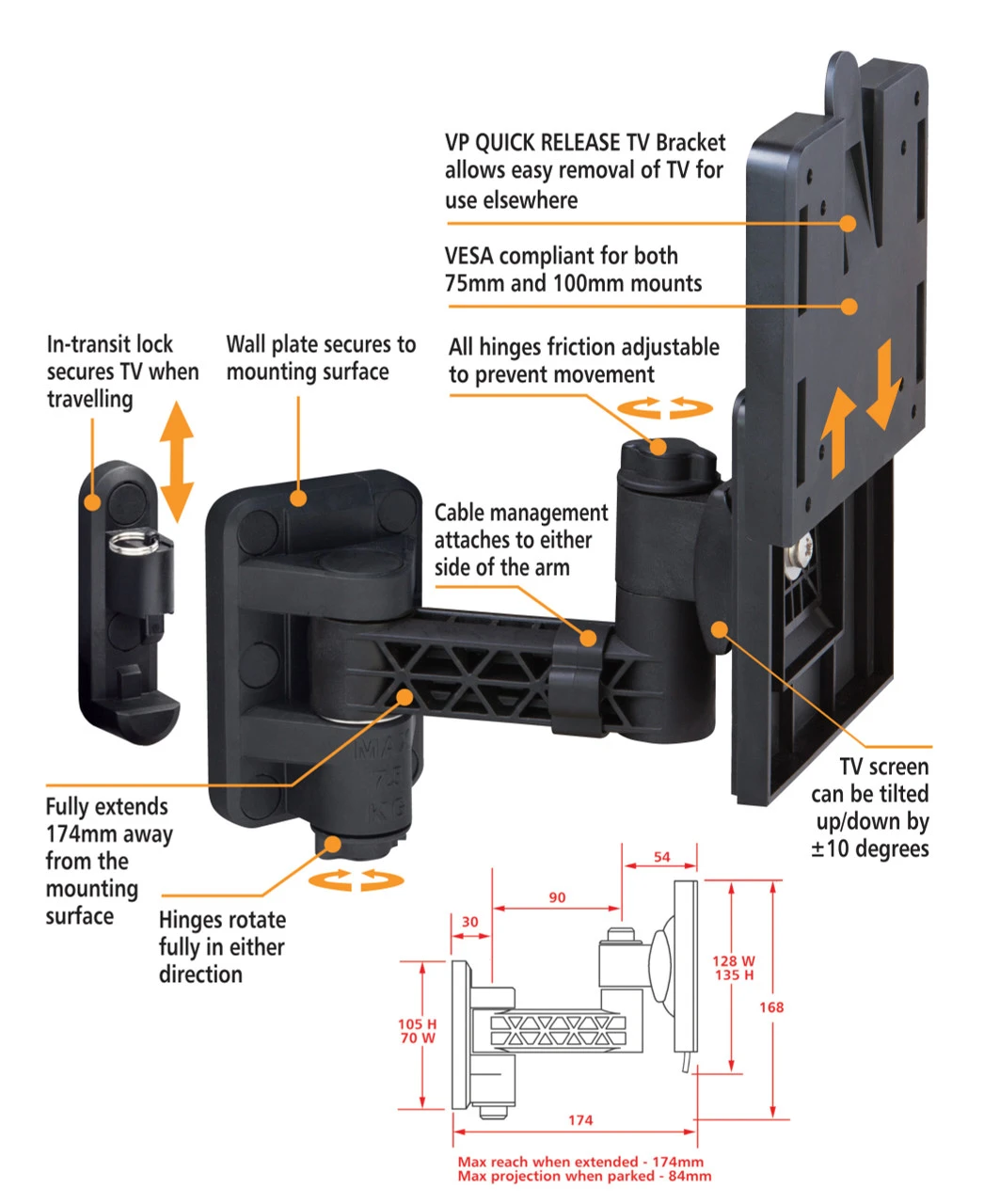

• SINGLE: Extends up to 174mm away from the wall, and only 84mm when folded away. Lightweight 0.7kg design

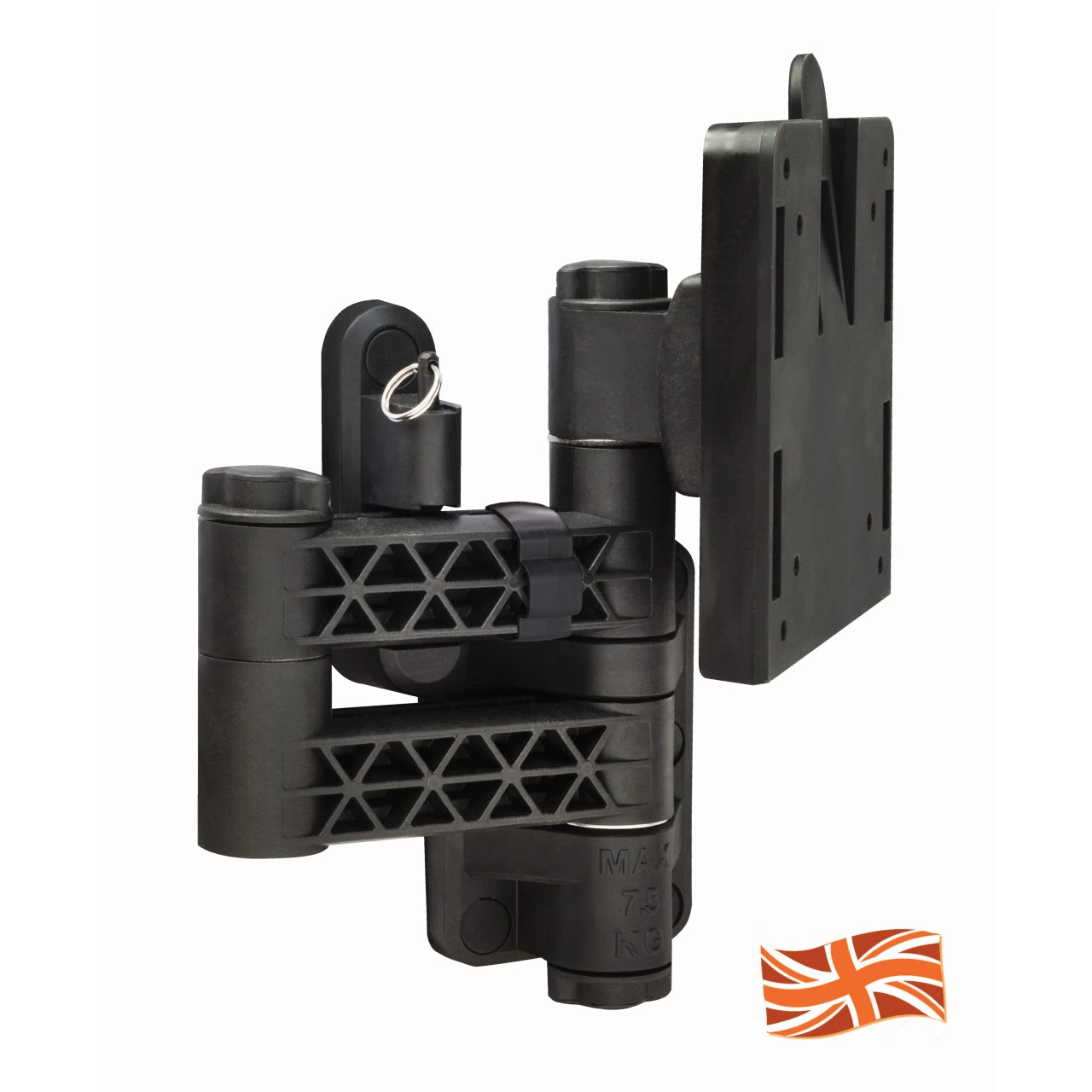

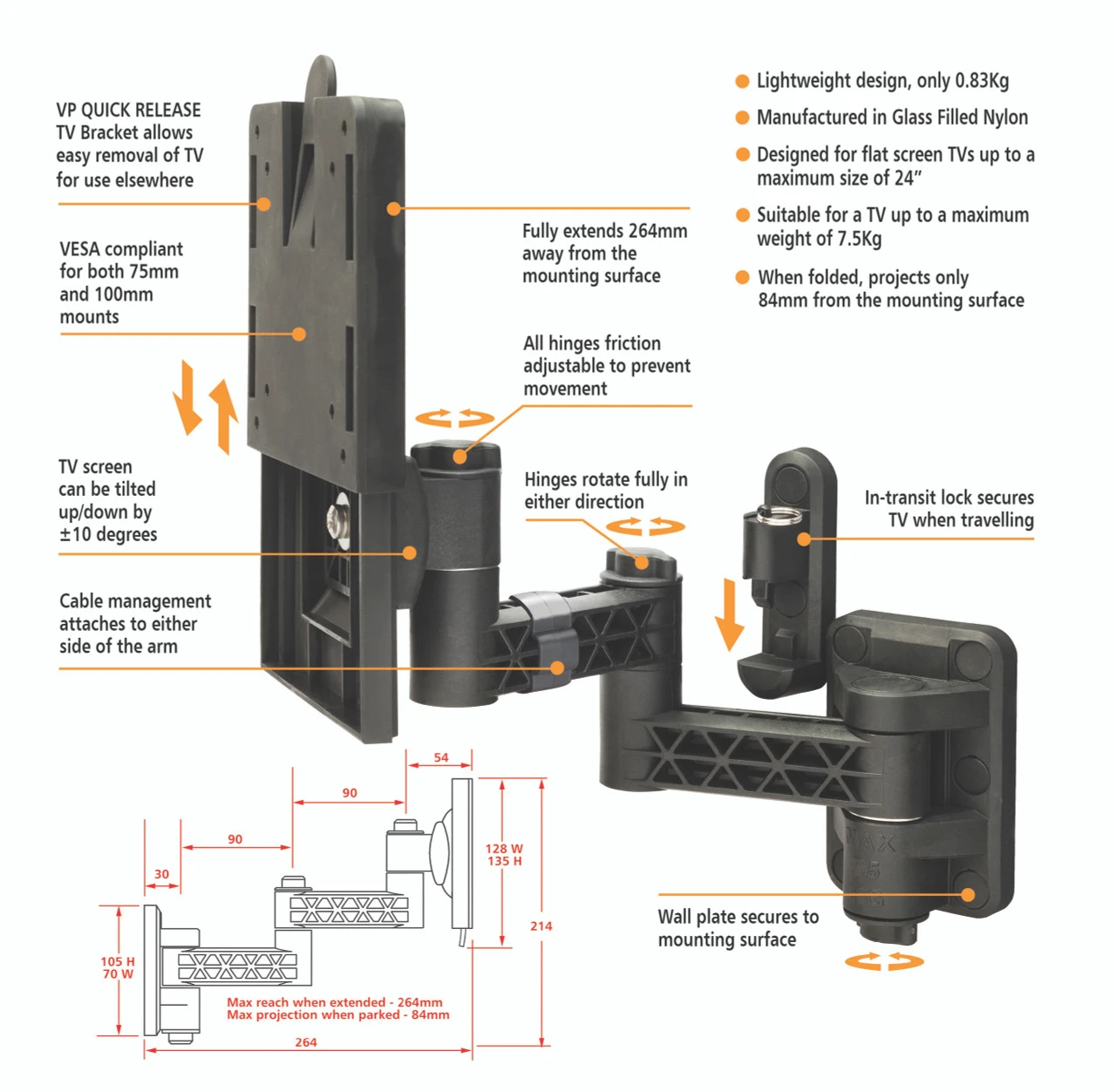

• DOUBLE: Extends up to 264mm away from the wall, and only 84mm when folded away. Lightweight 0.83kg design

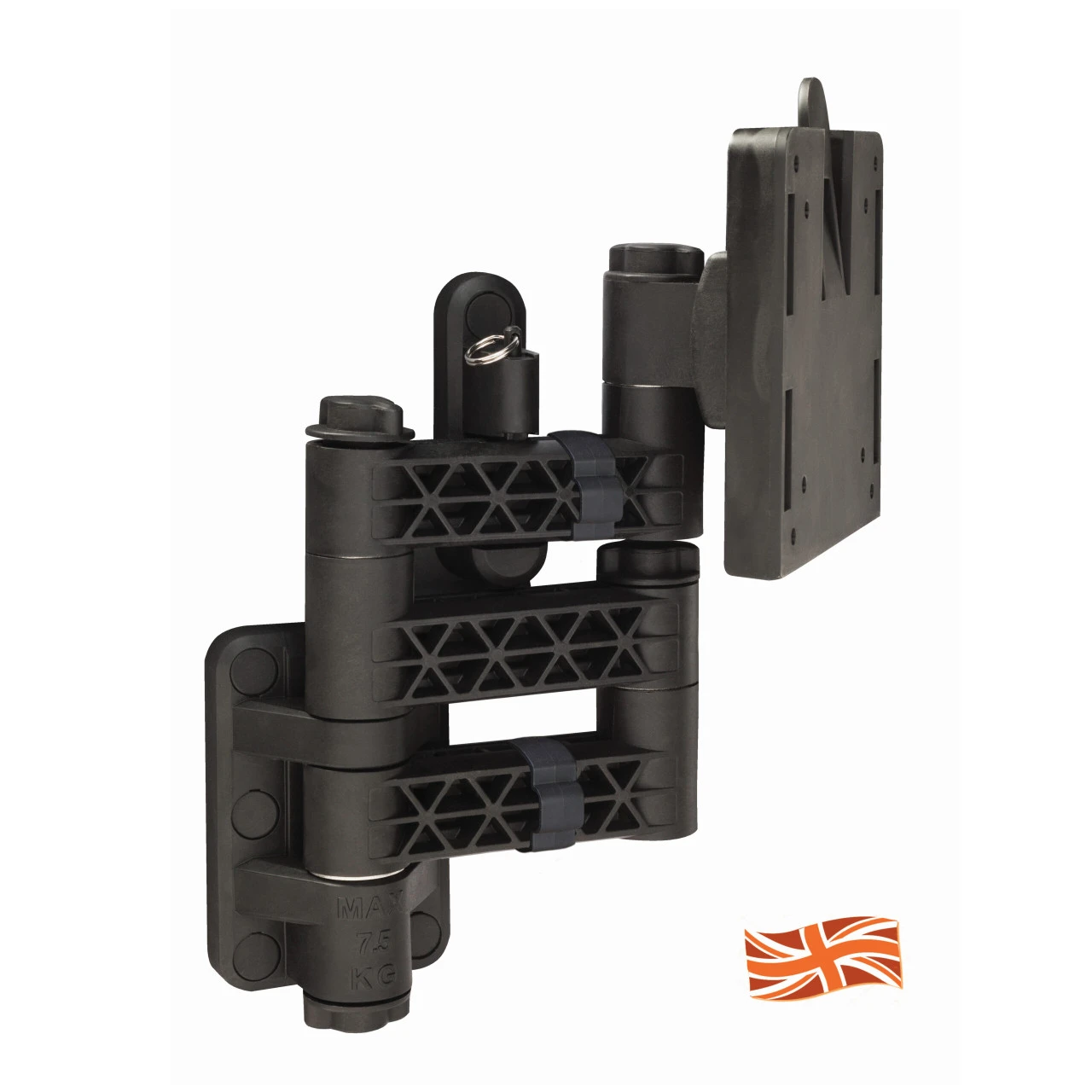

• TRIPLE: Extends up to 354mm away from the wall, and only 84mm when folded away. Lightweight 0.97kg design
• Made of glass-enriched nylon
• Compatible with TVs of up to 24″ and 7.5kg

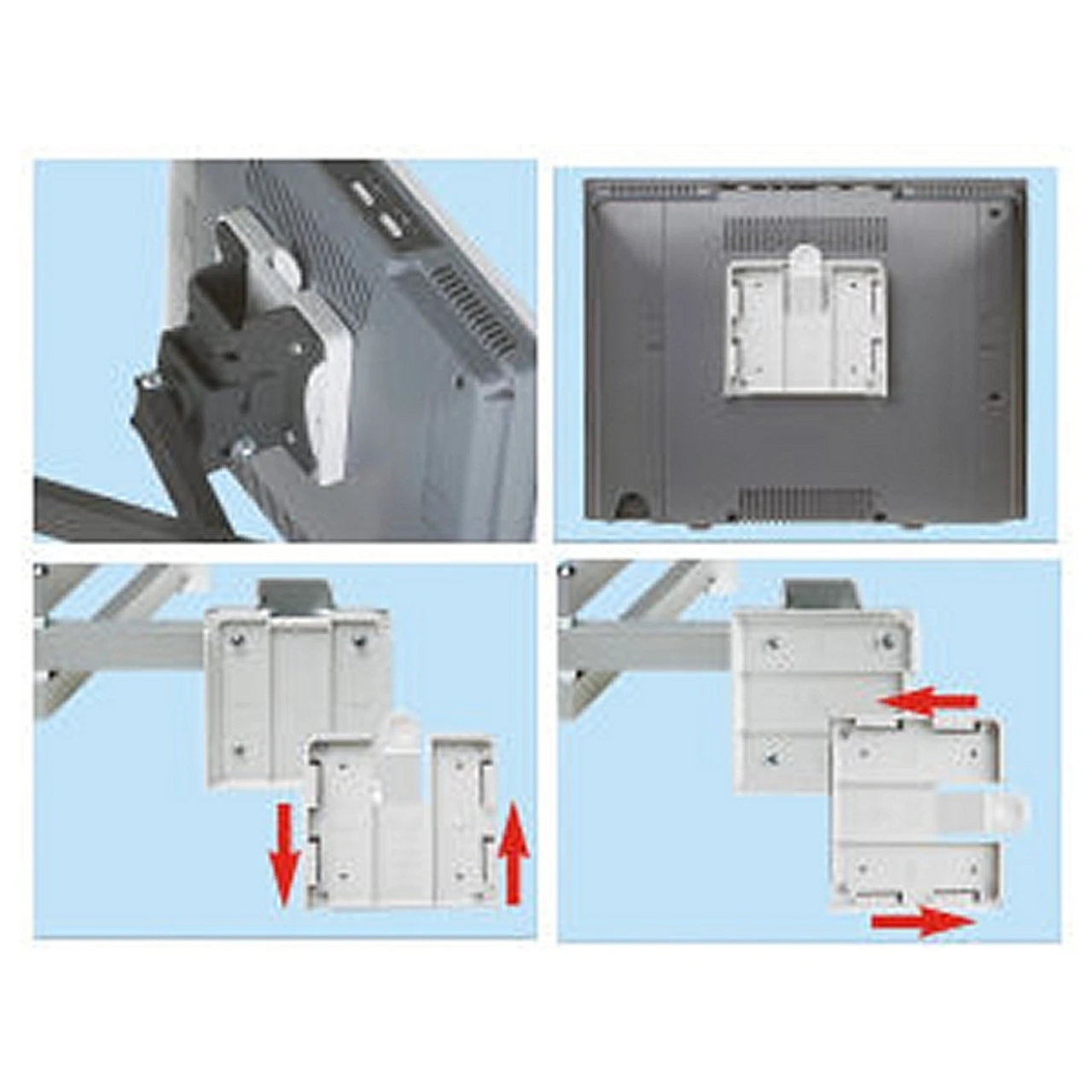

Vision Plus Quick release TV bracket Features:

• First plate fixes to TV, while second plate fixes to wall mount bracket
• Removing TV simply involves pressing a tab and sliding it out
• Can also be used directly as a wall bracket
• Compatible with all VESA 75mm and 100mm brackets
• For televisions of up to 24″
• Max load 15kg

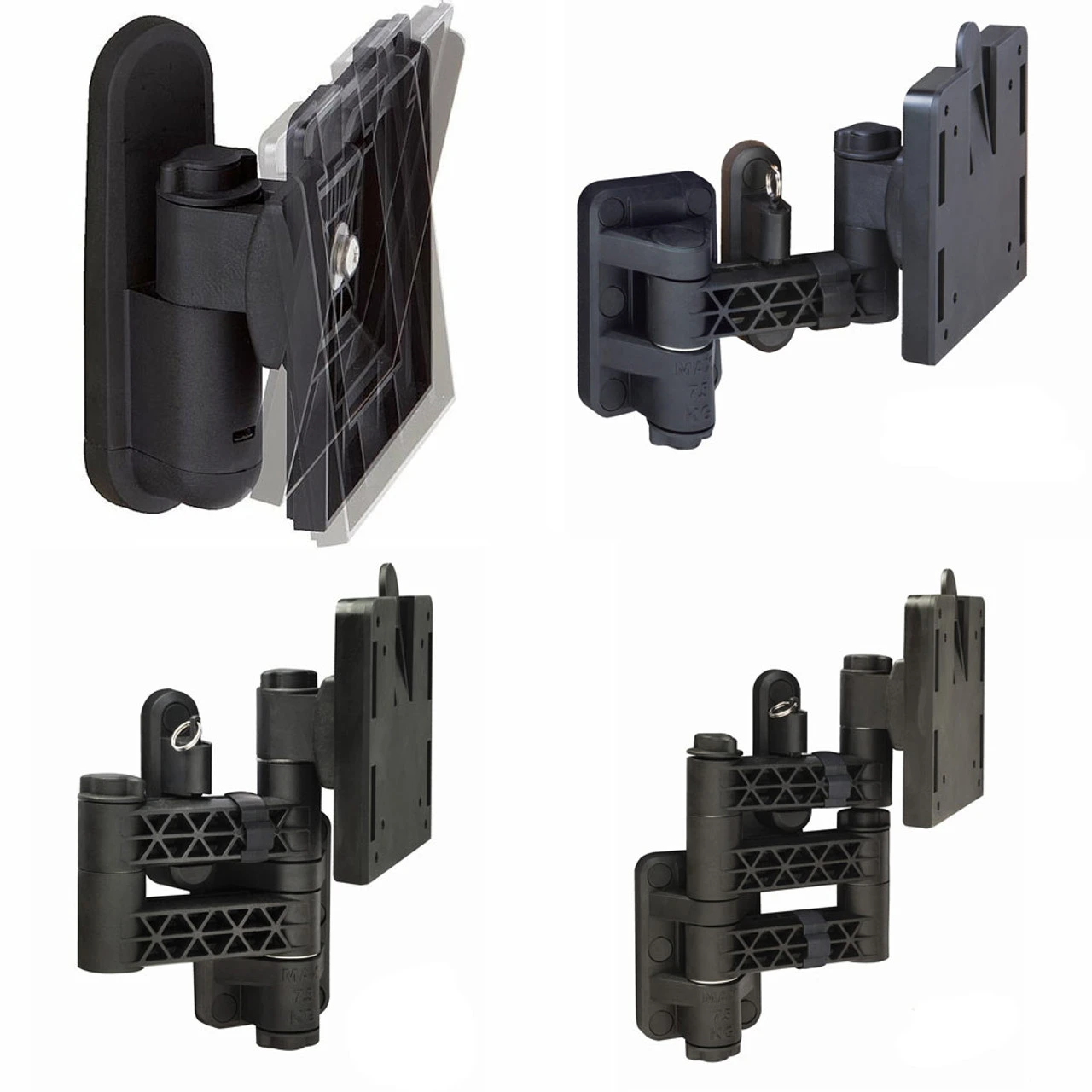

 Please Note: Image one, showing all variants, shows the discontinued short arm and single arm brackets. Please see images 5-10 images of the current models
