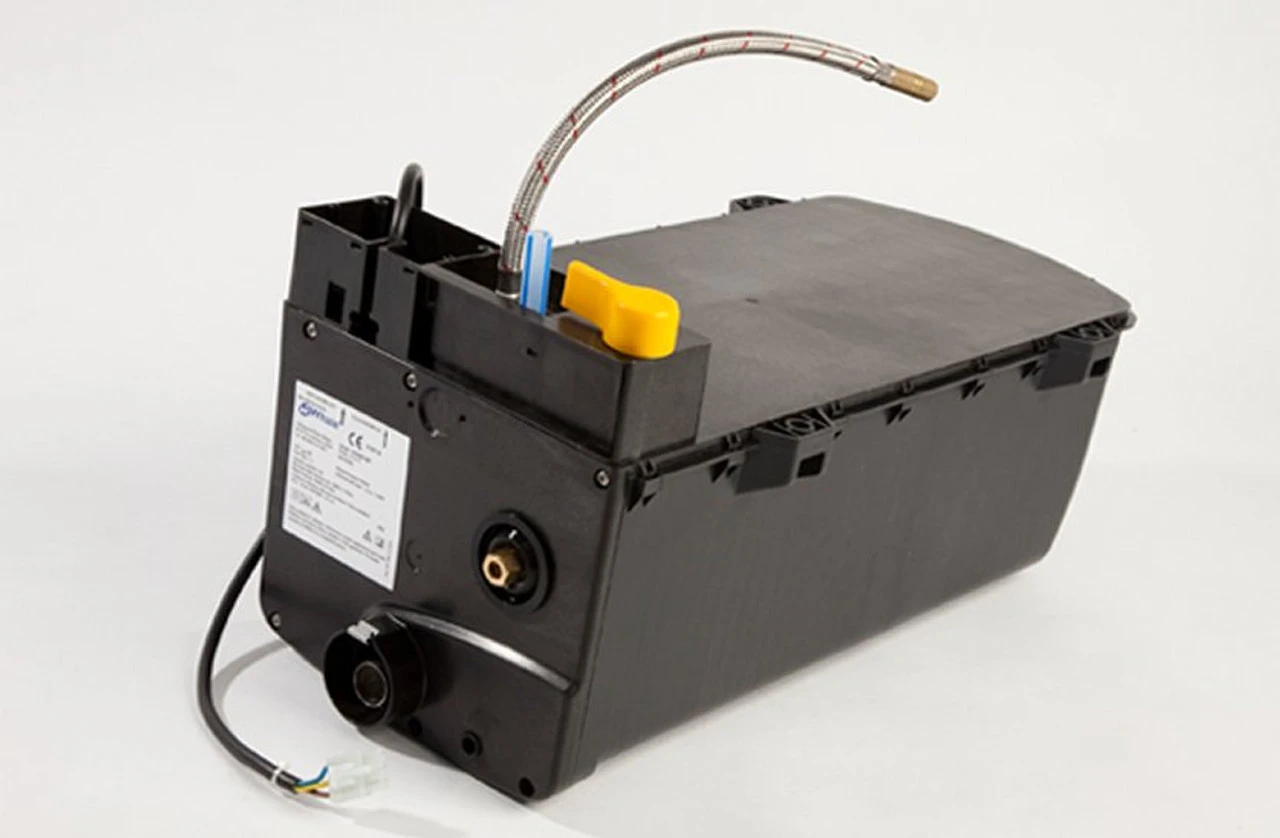

Whale Expanse Balanced Flue Gas & Electric Water Heater For Motorhomes

The Whale Expanse is a compact and versatile water storage heater ideal for maximising the available living space inside your campervan and motorhome through internal or external mounting (model specific), without the need to drill through the vehicle side walls.

The Whale Expanse offers 8 litres of water storage with the capacity to produce 14 litres of hot water whilst operating on 240v and LPG gas, with the option to operate on the individual power source or in combination to produce a faster heating time.

Flexible and streamlined installation

The versatile design of the Whale Expanse water heater allows it to be mounted in a variety of locations either internally or under the motorhome or campervan chassis. Secure mounting points are pre-moulded in the outer housing of the Whale Expanse. Also incorporated into the underside of the water heater is a fan-assisted flue minimising the need to make cut outs to your motorhome or campervan, speeding up installation time and ensuring your vehicles structure remains intact.

Additionally, the Whale Expanse includes external gas connections and an integrated Pressure Relief Drain Valve. The Whale Expanse water heater connects easily to Whale Quick Connect plumbing but adaptors can be used allowing it to connect to other typical plumbing systems.

Whale Expanse Water Heater Features:

•     Fast and highly efficient
•     12v Ignition
•     Space saving
•     Easy to install
•     The Whale Expanse fits inside the vehicle or externally under floor
•     Balanced flue
•     Gas, electric or combined
•     Complete with switch and wiring

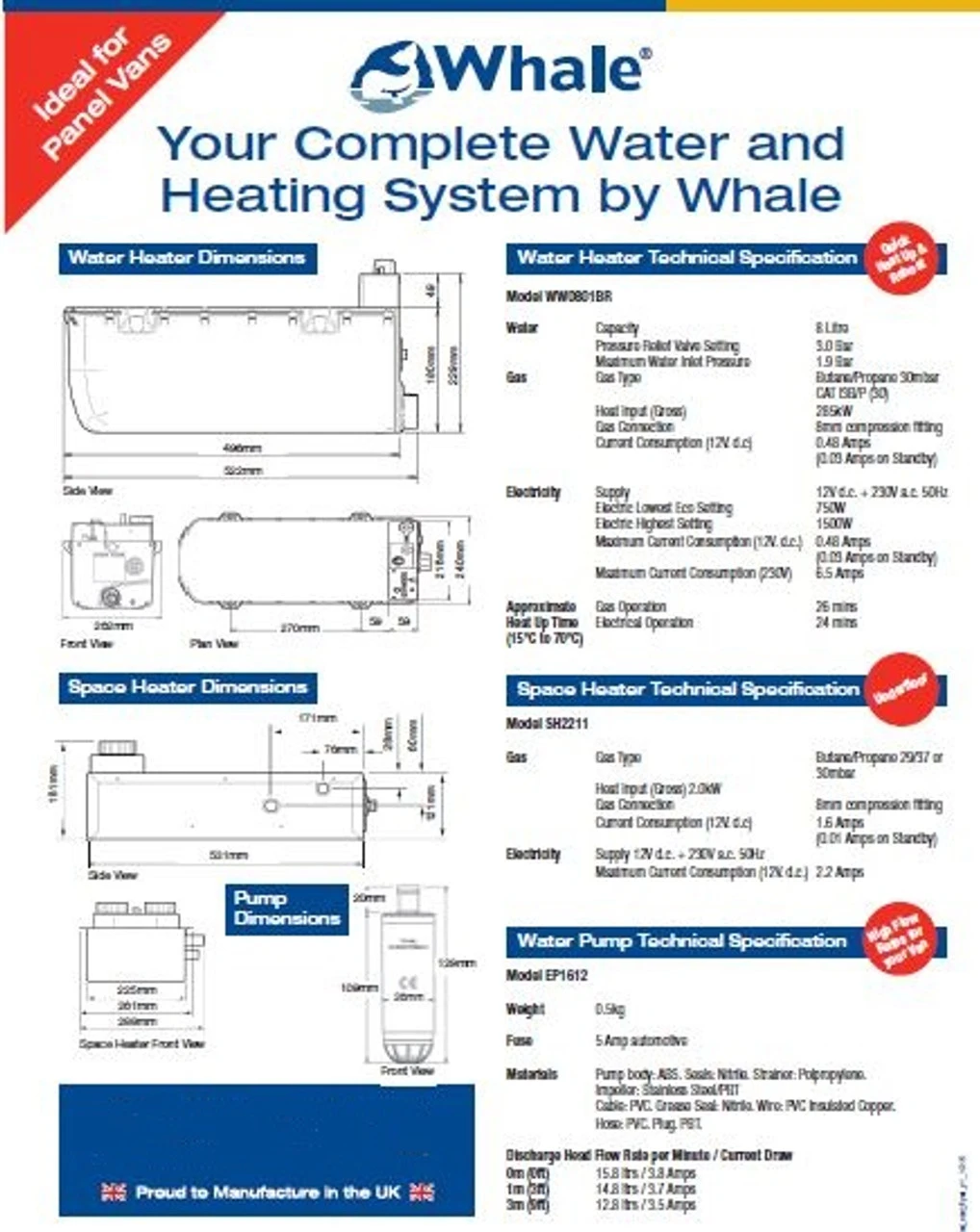

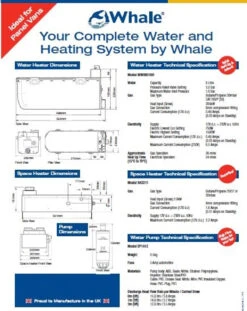

Complete system option:

The Whale Expanse water heater, when fitted alongside a Propex or Whale Under Floor Space Heater can create a high performance complete under floor gas and electric water and space heating system. The Whale Expanse is currently the only one on the market.

Manual:

Video showing easy set up and priming of your water system

Technical Specifications:

Capacity:

8 Litre

Pressure Relief Valve Setting:

3.0 Bar

Maximum Water Inlet Pressure:

1.9 Bar

Gas Type:

Butane/Propane 30mbar

Heat Input (Gross):

285kW

Gas Connection:

8mm compression fitting

Current Consumption (12v DC):

0.48 Amps (0.03 Amps on Standby)

Supply:

12v DC + 230v AC 50Hz

Electric Lowest Eco Setting:

750w

Electric Highest Setting:

1500W

Maximum Current Consumption (12v DC):

0.48 Amps (0.03 Amps on Standby)

Maximum Current Consumption (230V):

6.5 Amps

Heat Up Time 15-70°C (Electrical Operation):

24 mins

Heat Up Time 15-70°C (Gas Operation):

26 mins

Heat Up Time 15-70°C (Gas & Electrical Operation):

15 mins
